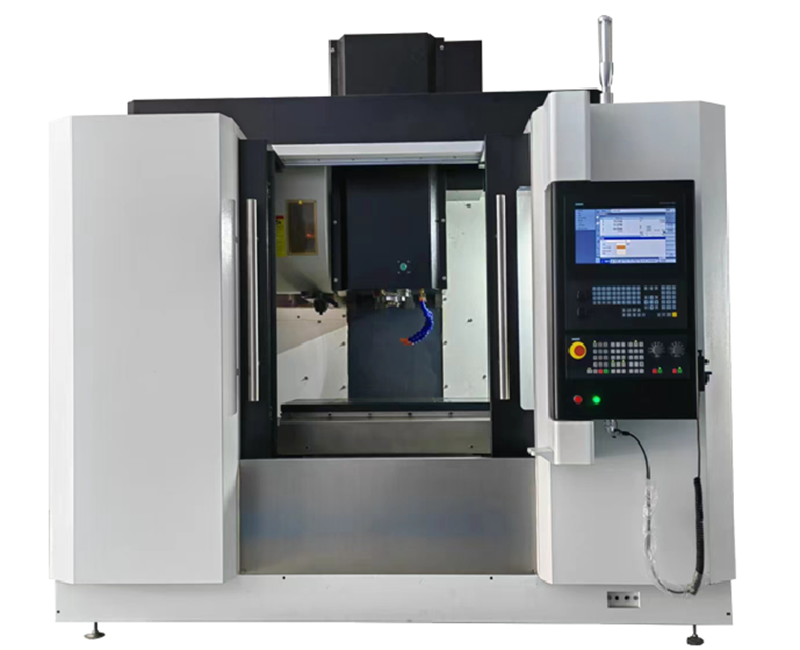

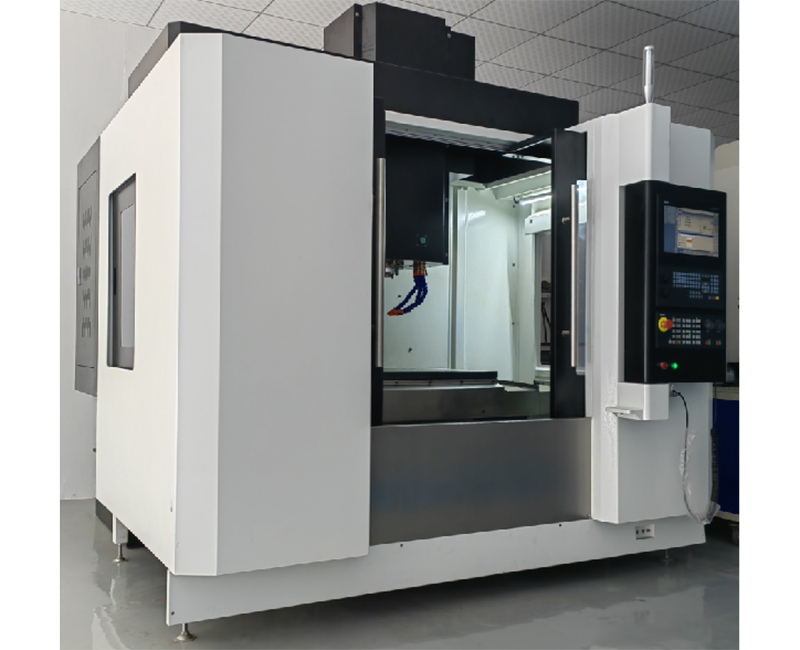

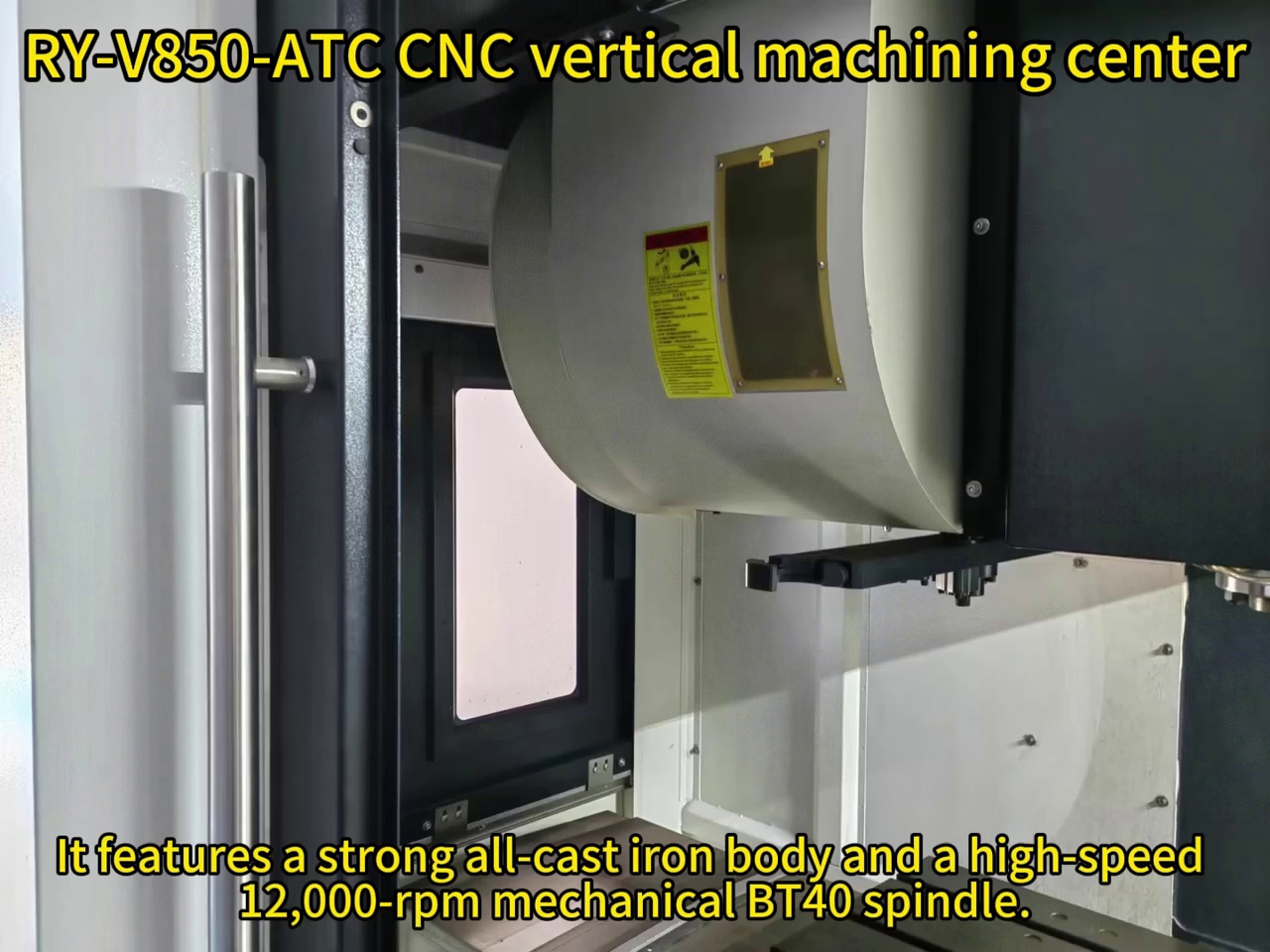

RY-V850/V1160-ATC Precision CNC Vertical Machining Center
- Rough and precision machining of steel, aluminum, and copper molds.
- Manufacturing of various molds and precision parts.
- Capable of engraving, milling, cutting, planing, tapping, and drilling.
- Equipped with a Taiwan mechanical servo spindle, it provides strong rough machining capabilities and high-speed precision machining.
-It has ATC automatic tool change function 24 tools
- Professional manufacturing of steel, copper, and aluminum molds.
- Particularly suitable for precision parts production in the military industry.
- Automotive parts production.
- Precision hardware parts manufacturing.
- 3C electronic parts manufacturing (including glass and ceramics).
- Prototype manufacturing.
Machine Parameters
|
1 |
Table size |
1000×500/ 1200×600mm |
14 |
Positioning accuracy |
±0.006/300mm |
|
2 |
T-groove |
18×4×125mm |
15 |
Repetitive positioning accuracy |
±0.006/300mm |
|
3 |
The largest load |
600KG |
16 |
Machined surface accuracy |
≤Ra1.6 |
|
4 |
Maximum feed heigh |
720mm |
17 |
The machining accuracy |
±0.01mm |
|
5 |
Spindle to table distance |
120－720mm |
18 |
Working voltage |
380V±10% |
|
6 |
Triaxial travel X/Y/Z |
800×500×500/ 1100×600×600mm |
19 |
Machine size (l * W * H) |

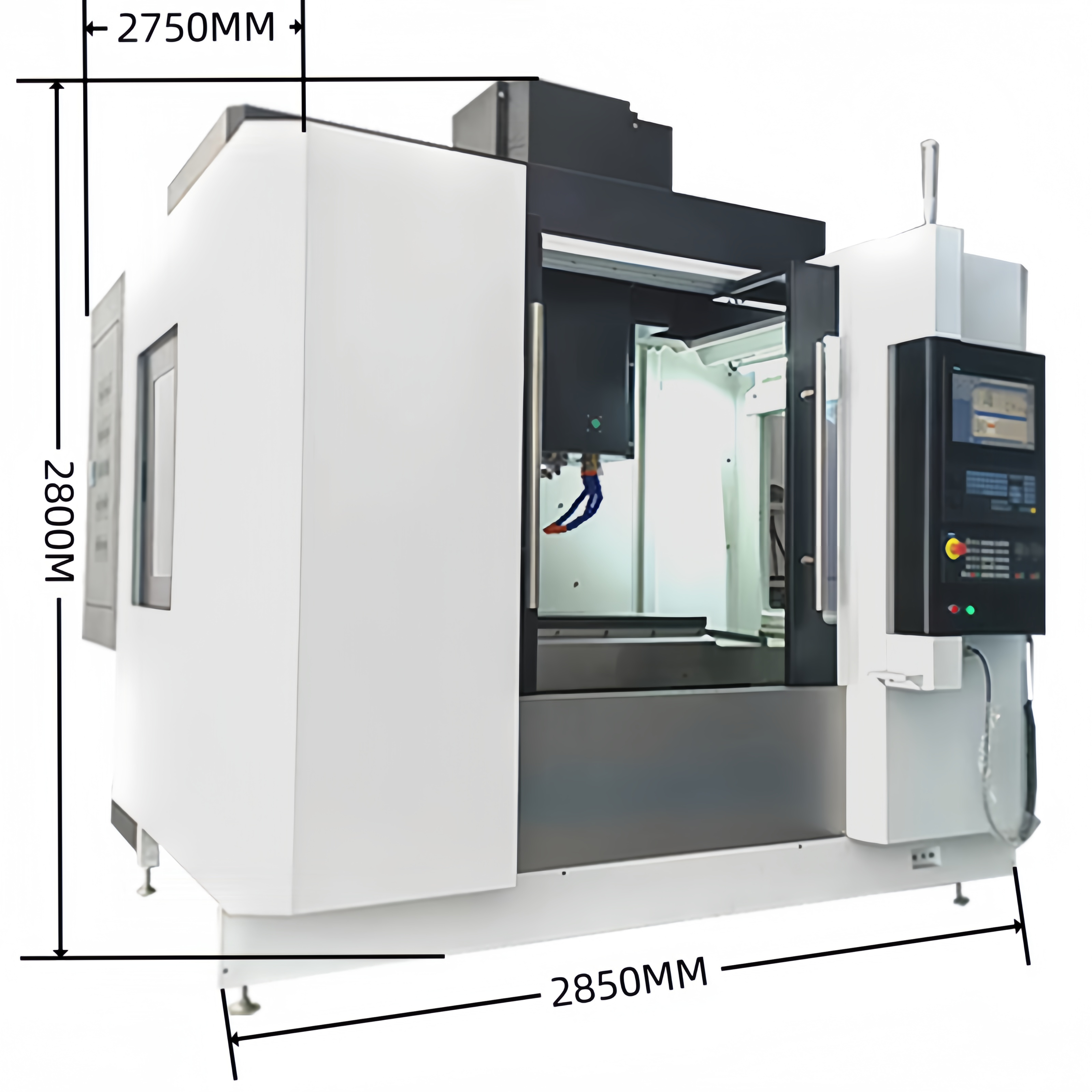

2850×2750×2800mm |
|
7 |
The spindle diameter |
Ǿ140 |
20 |
The body weight |
6000KG |
|
8 |
Spindle speed |
12000RPM |
21 |
The system configuration |
Mitsubishi M80/Fanuc OI |
|
9 |
Spindle motor power |
11-15 KW |
22 |
Servo unit |
Mitsubishi/Fanuc |
|
10 |
Fast moving rate X/Y/Z |
36/36/36m/Min |
23 |
Ball screw |
Taiwan HIWIN/PMI |
|
11 |
Processing speed |
0－36m/Min |
24 |
Linear guide |
Taiwan HIWIN/PMI |
|
12 |
Spindle tool library capacity |
24 |
25 |
The spindle taper |
BT40 |
|
13 |
Tool change time |
0.6S |
26 |
Knife library classes |
Clip arm type rotary knife library |
-
-
-
-
-

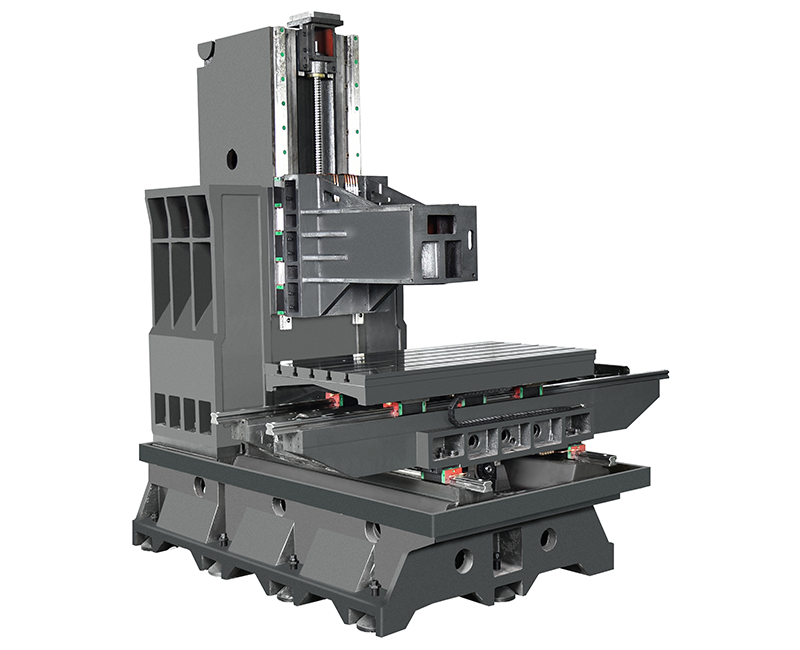

Cast iron body weight 5000KG
-

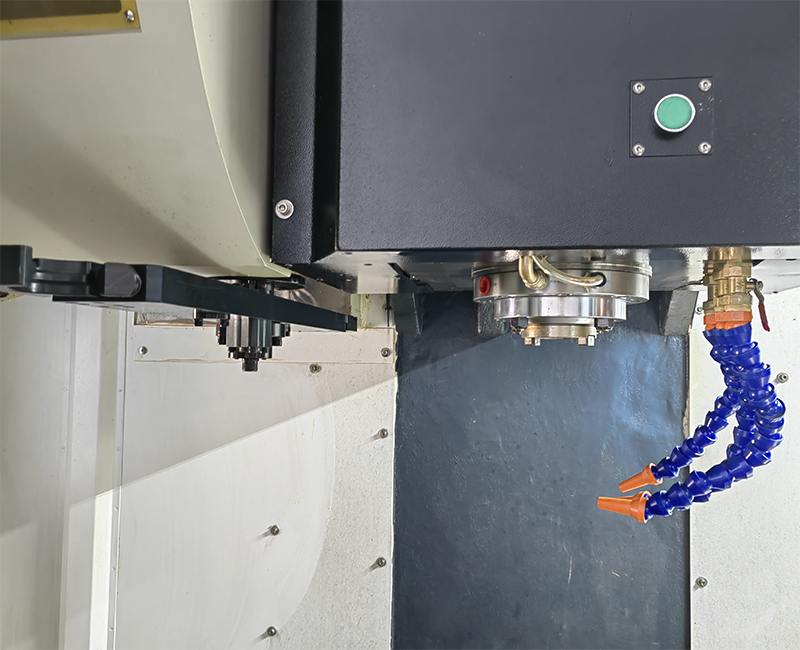

BT40 tool holder, 24tool magazines
-

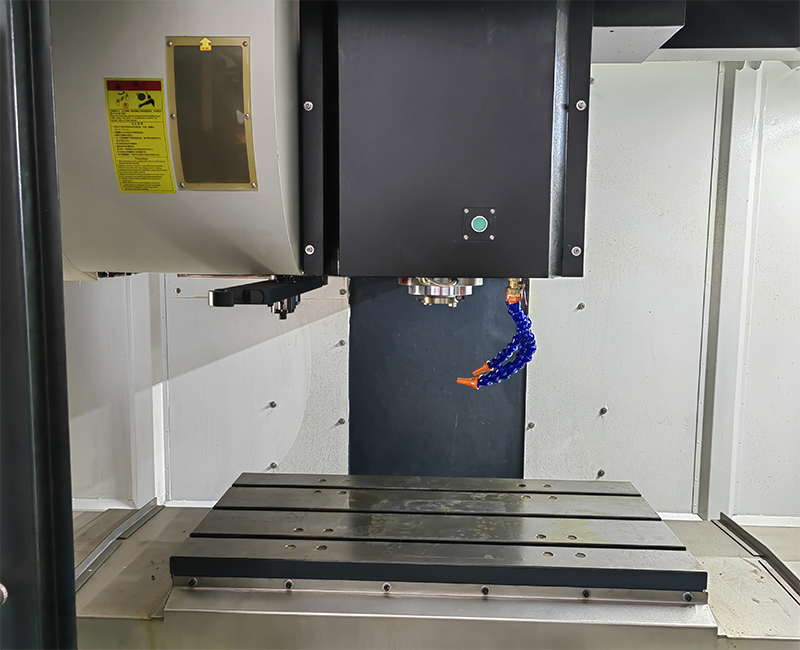

Workbench travel XYZ800*500*500MM
-
Taiwan's new generation 6GA-E bus absolute value control system
|
A |
Machine parameters: |
|
|
1 |
The machine body and all parts are made of nano castings. |
|
|
2 |

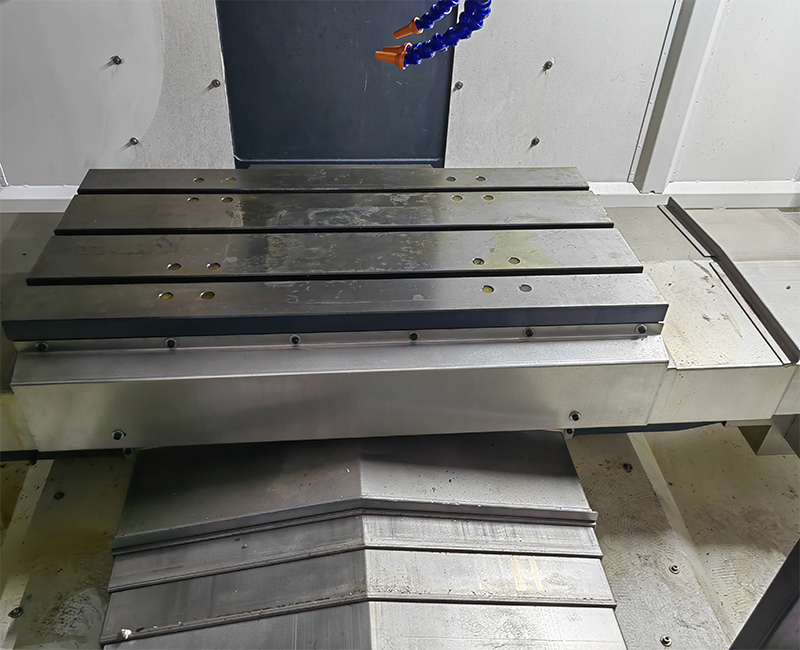

Table size |
1000×500/1200×600mm |
|
3 |
T-groove |
18×4×125mm |
|
4 |
The largest load |
600KG |
|
5 |
Maximum feed heigh |
720mm |
|
6 |
Spindle to table distance |
120－720mm |
|
7 |
Triaxial travel X/Y/Z |
800×500×500mm/1100×600×600mm |
|
8 |
The spindle diameter |
Ǿ140 |
|
9 |
Spindle speed |
0-12000RPM |
|
10 |
Spindle motor power |
Mechanical servo spindle, capable of forward and reverse tapping |
|
11 |
Spindle tool library capacity |
24 |
|
12 |
Tool change time |
≤1S |
|
13 |
The spindle taper |
BT40 |
|
14 |
Knife library classes |
BT40 Robotic arm disc tool changer |
|
15 |
Fast moving rate X/Y/Z |
36/36/36m/Min |
|
16 |
Processing speed |
6－12m/Min |
|
17 |
Positioning accuracy |
±0.003/300mm |
|
18 |
Repetitive positioning accuracy |
±0.003/300mm |
|
19 |
Machined surface accuracy |
≤Ra0.8－1.6 |
|
20 |
The machining accuracy |
±0.01mm (calibrated by Renishaw ballbar, UK) |
|
21 |
Working voltage |
380V±10%/220V±10% |
|
22 |
Machine size (l * W * H) |
2850×2750×2800mm |
|
23 |
The body weight |
5000KG |
|
B |
-axis parameters： |
|
|
1 |
Fourth axis B axis rotation angle |
/Optional) |
|
2 |
Fifth axis C axis rotation angle |
/Optional) |
|
2-1 |
The repeatability of the B-axis and C-axis is |
/ |
|
2-2 |
The positioning accuracy of the B-axis and C-axis is |
/ |
|
3 |
Turntable response time |
/ |
|
4 |
Five-axis linkage mode |
/ |
|
C |

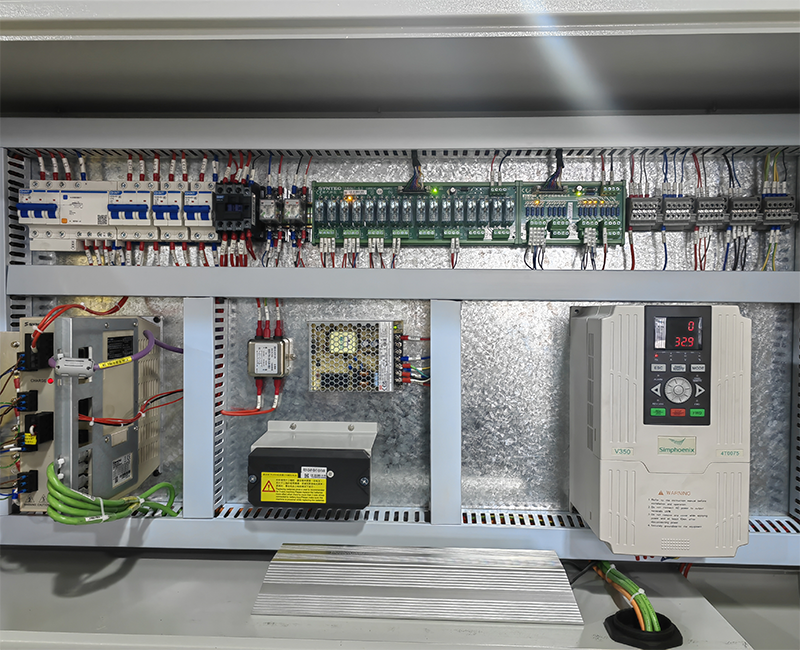

Machine tool configuration details brand parameters： |
|
|
1 |
System Configuration |
Taiwan SYNTEC 22MA absolute value system (Mitsubishi and Fanuc are optional) |
|
2 |
Spindle |
11-15KW spindle motor (high-precision and high-speed spindle) |
|
3 |
Ball Screw |
Taiwan Hiwin high precision grinding grade |
|
4 |
Linear Guides |
Taiwan Hiwin high precision and high rigidity guide rail |
|
5 |
Servo unit |
Taiwan SYNTEC absolute servo motor |
|
6 |
Screw bearings |
Taiwan TPI precision bearings |
|
7 |
Switching Power Supply |
Taiwan Mean Well |
|
8 |
Electrical switches |
China Chint |
|
9 |
Lubrication system |
Fully automatic butter and grease lubrication system |
|
10 |
Couplings |
China Hongruppe |
|
11 |
Automatic tool setting instrument |
China Hongruppe |
|
12 |
Handwheel |
China Hongruppe |
|
13 |
Frequency Converter |
China Quartet |
|
14 |
Spindle cooling system |
Water cooler with compressor |
|
15 |
Cooling pump head |
14M |
|
16 |
Disc servo tool magazine |
Robotic arm disc tool changer |
|
17 |
Machine tool processing chamber closed |
Fully enclosed |
|
18 |
Continuous operation time of equipment |
7*24 hours/week |
|
19 |
Four-axis and five-axis reducer |
Japanese four-axis and five-axis (precision ±30-60 arc seconds) |
|
NO. |
Product (name) |
Quantity |
Quantity |
|
1 |
RY-V850-ATC machine tool (including castings, sheet metal, and systems) |
1SET |
|
|
2 |
Spindle Cooling Machine |
1SET |
|
|
3 |
Working cooling oil pump |
1POS |
|
|
4 |
Toolbox |
1POS |
|
|
5 |
T-screws, clamps, spacers |
4SET |
|
|
6 |
Spindle lock tool holder |
1POS |
|
|
7 |
Spindle disassembly wrench |
1SET |
|
|
8 |
6-corner wrench |
1SET |
|
|
9 |
T11 handle |
3SET |
|
|
10 |
ER11 chuck |
3POS |
|
|
11 |
USB flash drive |
1POS |
|
|
12 |
screwdriver |
2POS |
|
-
Button Hydraulic Mould
-
Epoxy Mold
-
Copper doll mold
-
Injection steel mold
-

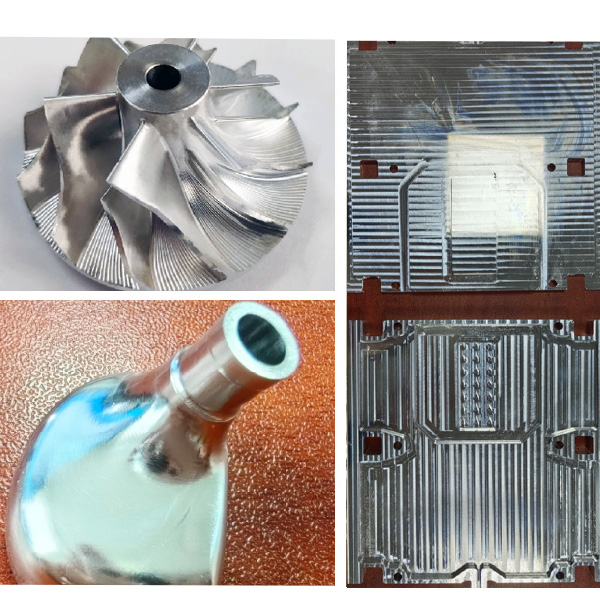

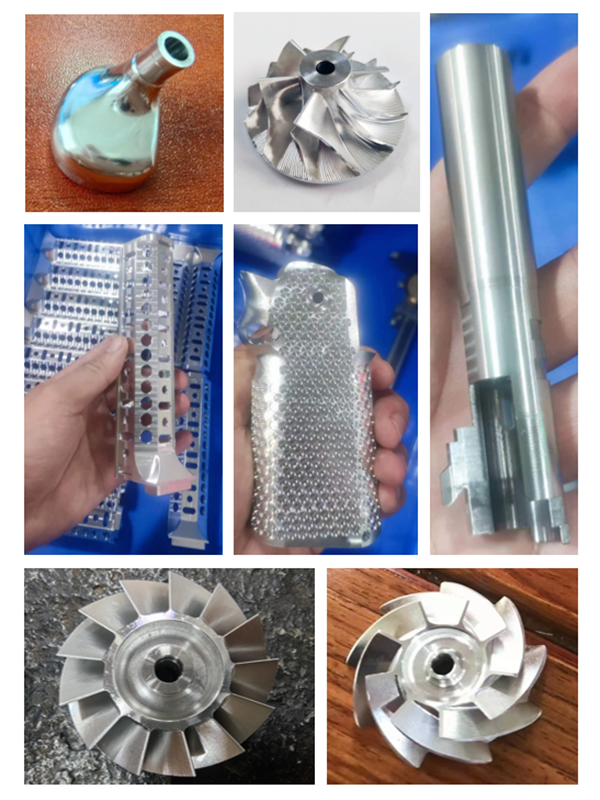

Precision Parts
-
Precision Parts
-
Precision Parts
-
Precision Parts
-

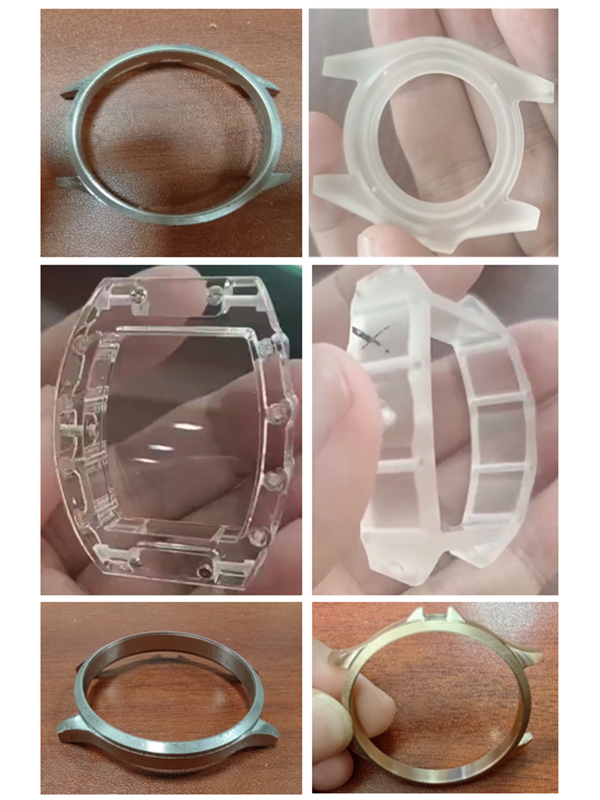

Watch Parts
-
