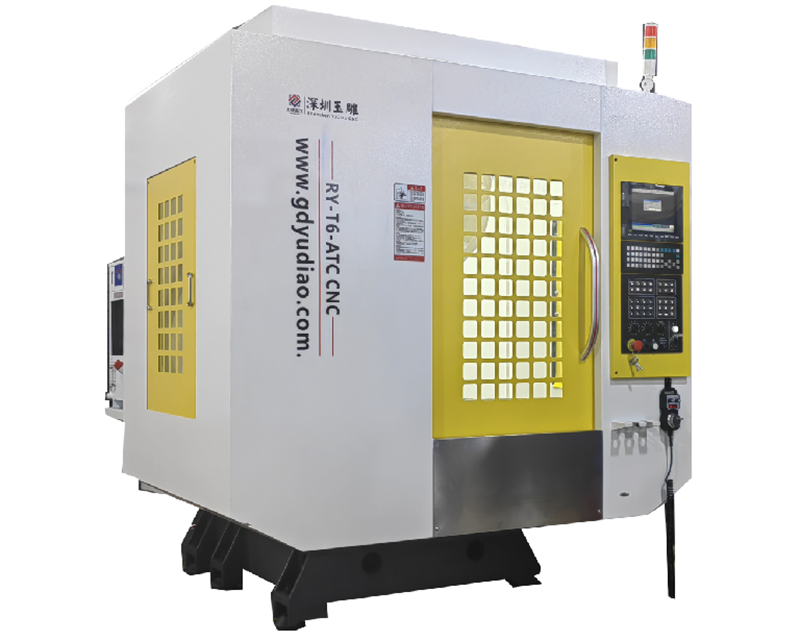

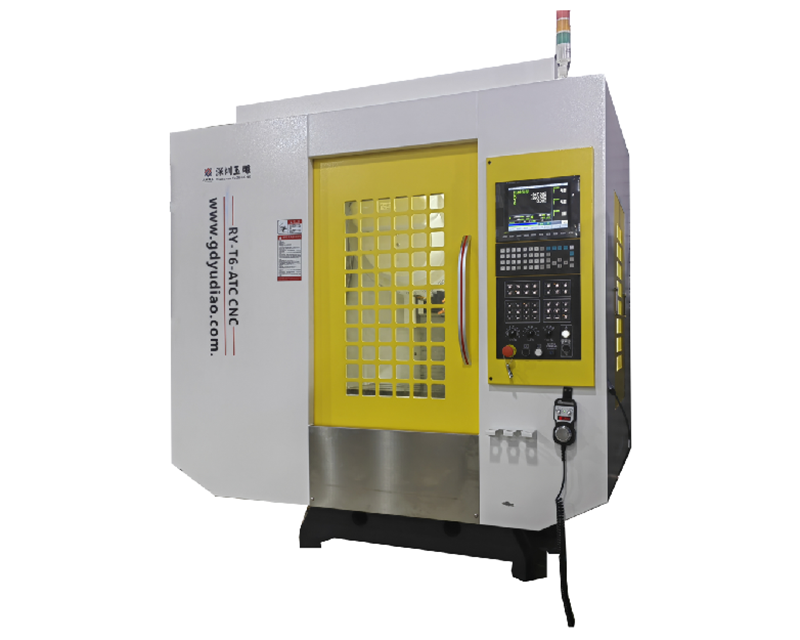

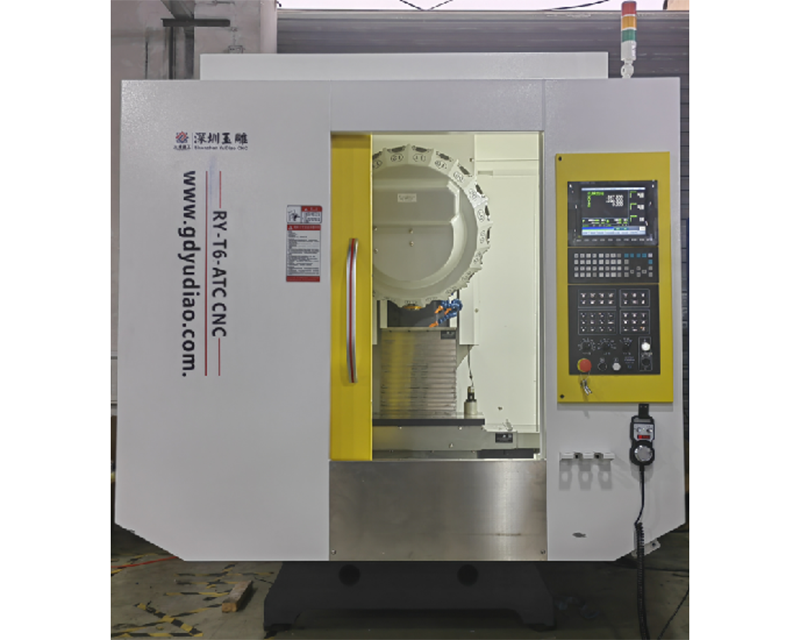

RY-T6-ATC Precision CNC Engraving and Milling Machine
- Rough and precision machining of steel, aluminum, and copper molds.
- Manufacturing of various molds and precision parts.
- Capable of engraving, milling, cutting, planing, tapping, and drilling.
- Equipped with a Taiwan mechanical servo spindle, it provides strong rough machining capabilities and high-speed precision machining.

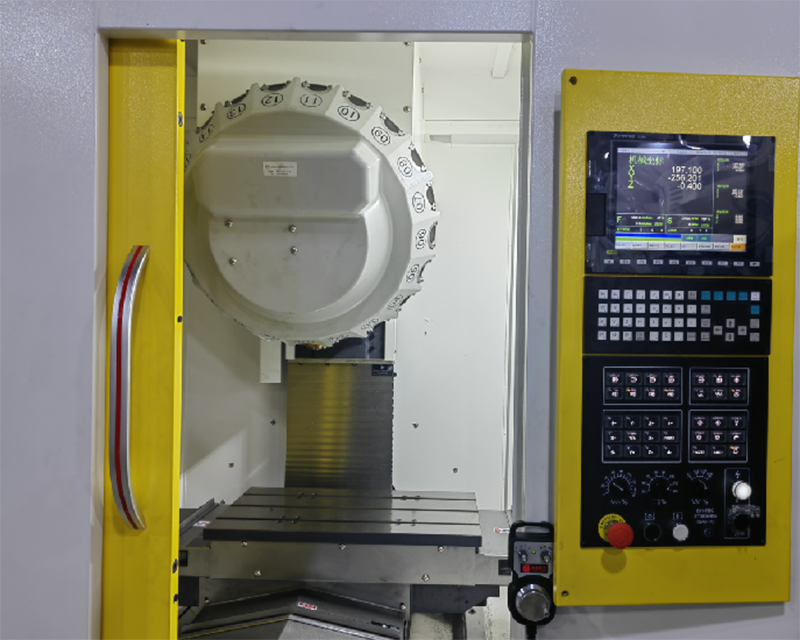

- Equipped with ATC (Automatic Tool Changer) function
- Professional manufacturing of steel, copper, and aluminum molds.
- Particularly suitable for precision parts production in the military industry.
- Automotive parts production.
- Precision hardware parts manufacturing.
- 3C electronic parts manufacturing (including glass and ceramics).
- Prototype manufacturing.
Machine Parameters
|
1 |

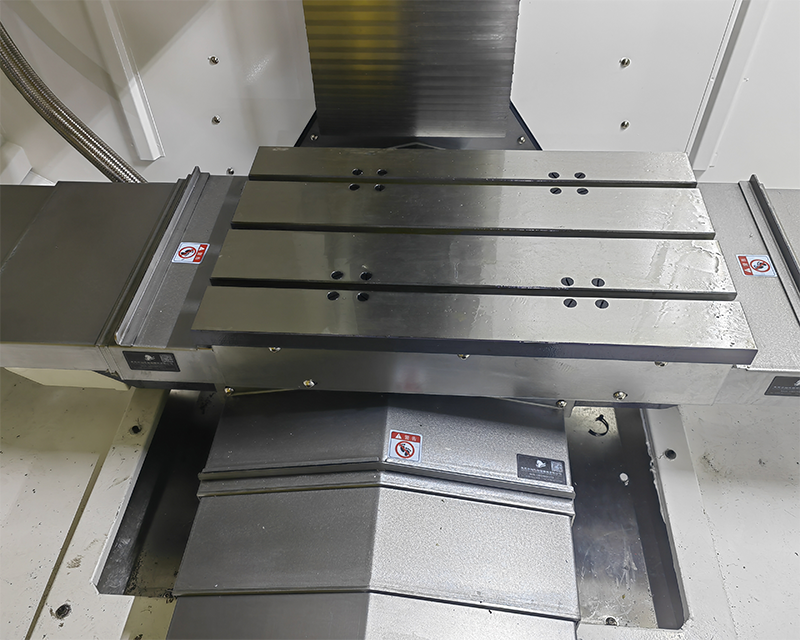

Table size |
600×400mm |
14 |
Positioning accuracy |
±0.006/300mm |
|
2 |
T-groove |
10×5×78mm |
15 |
Repetitive positioning accuracy |
±0.006/300mm |
|
3 |
The largest load |
200KG |
16 |
Machined surface accuracy |
≤Ra1.6 |
|
4 |
Maximum feed heigh |
430mm |
17 |
The machining accuracy |
±0.01mm |
|
5 |
Spindle to table distance |
80－430mm |
18 |
Working voltage |
380V±10% |
|
6 |
Triaxial travel X/Y/Z |
600/400/350mm |
19 |

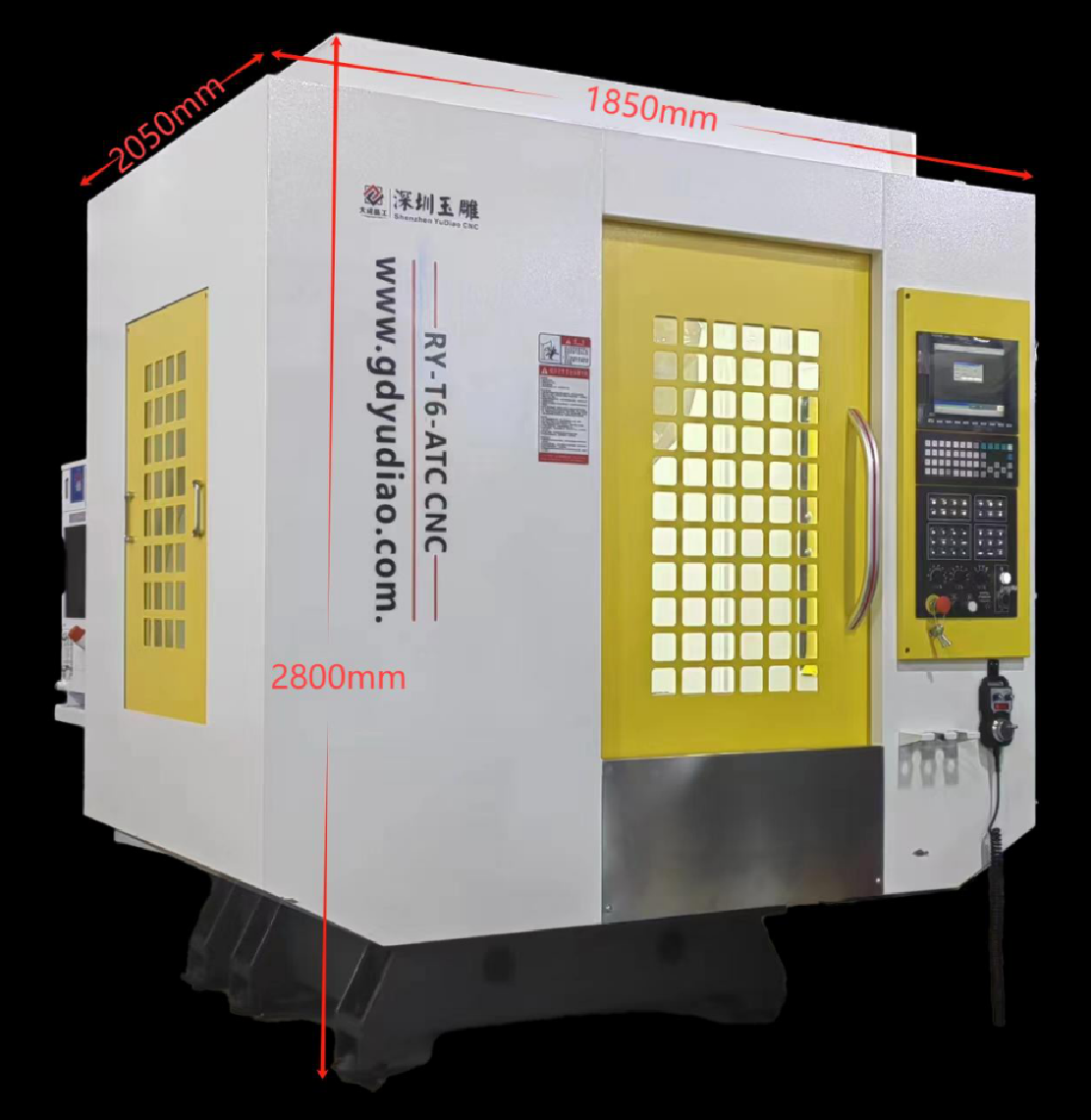

Machine size (l * W * H) |
1850×2050×2800mm |
|
7 |
The spindle diameter |
Ǿ100 |
20 |
The body weight |
3500KG |
|
8 |
Spindle speed |
20000RPM |
21 |
The system configuration |
SYNTEC 22MA/Mitsubishi E80 |
|
9 |
Spindle motor power |
7.5 KW/5.5KW |
22 |
Servo unit |
SYNTEC /Mitsubishi/Fanuc |
|
10 |
Fast moving rate X/Y/Z |
48/48/48m/Min |
23 |
Ball screw |
Taiwan HIWIN/PMI |
|
11 |
Processing speed |
0－36m/Min |
24 |
Linear guide |
Taiwan HIWIN/PMI |
|
12 |
Spindle tool library capacity |
21 |
25 |
The spindle taper |
BT30 |
|
13 |
Tool change time |
1S |
26 |
Knife library classes |
Clip arm type rotary knife library |
-
-
-
-
-

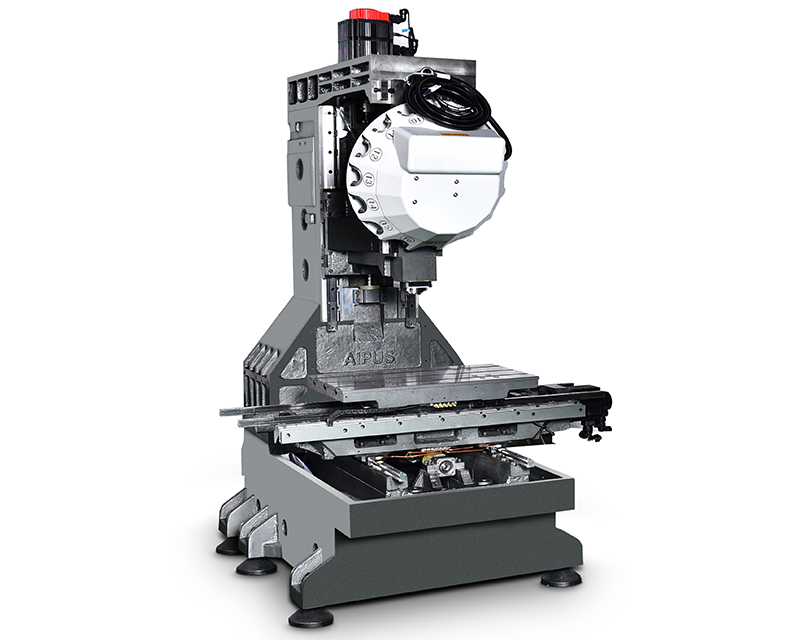

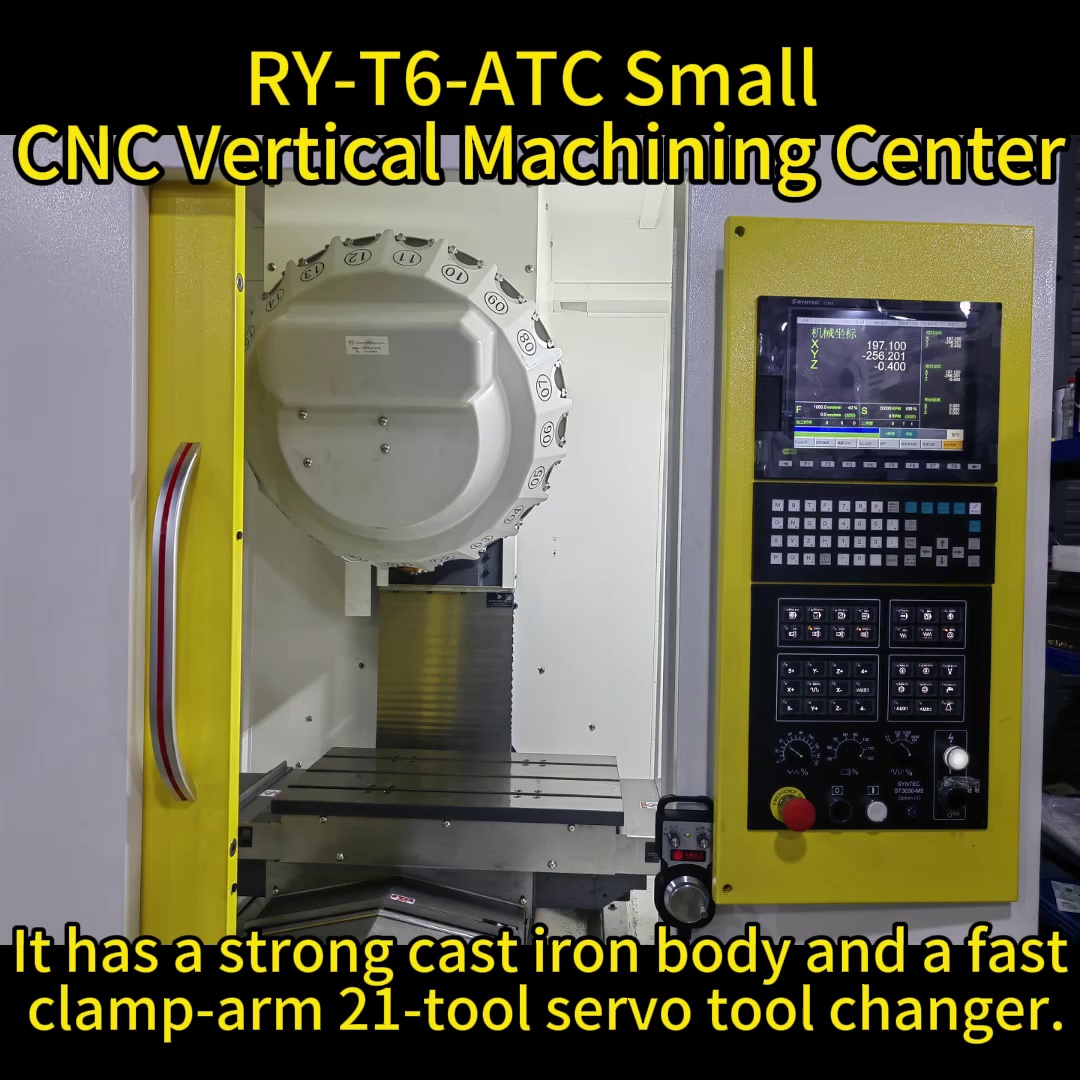

Cast iron body weight 3000KG
-

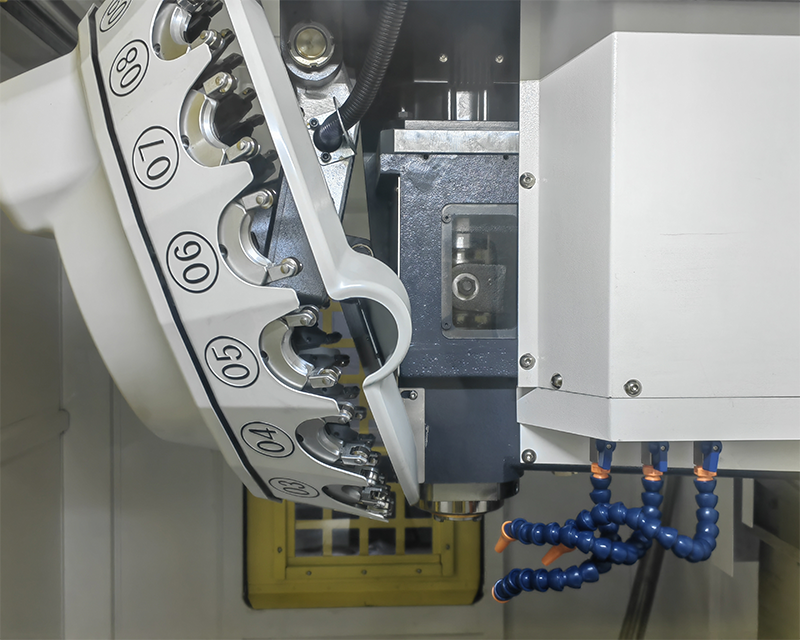

BT30 tool holder, 21tool magazines
-
Workbench travel XYZ600*400*350MM
-
Taiwan's new generation 6GA-E bus absolute value control system
|
A |
Machine parameters: |
|
|
1 |
The machine body and all parts are made of nano castings. |
|
|
2 |
Table size |
700×400mm |
|
3 |
T-groove |
10×5×78mm |
|
4 |
The largest load |
300KG |
|
5 |
Maximum feed heigh |
430mm |
|
6 |
Spindle to table distance |
80－430mm |
|
7 |
Triaxial travel X/Y/Z |
600/400/350mm |
|
8 |
The spindle diameter |
Ǿ100 |
|
9 |
Spindle speed |
0-20000RPM |
|
10 |
Spindle motor power |
Mechanical servo spindle, capable of forward and reverse tapping |
|
11 |
Spindle tool library capacity |
21 |
|
12 |
Tool change time |
≤1S |
|
13 |
The spindle taper |
BT30 |
|
14 |
Knife library classes |
Clamp-arm servo tool magazine |
|
15 |
Fast moving rate X/Y/Z |
48/48/48m/Min |
|
16 |
Processing speed |
6－12m/Min |
|
17 |
Positioning accuracy |
±0.003/300mm |
|
18 |
Repetitive positioning accuracy |
±0.003/300mm |
|
19 |
Machined surface accuracy |
≤Ra0.8－1.6 |
|
20 |
The machining accuracy |
±0.01mm (calibrated by Renishaw ballbar, UK) |
|
21 |
Working voltage |
380V±10%/220V±10% |
|
22 |
Machine size (l * W * H) |
1850×2050×2800mm |
|
23 |
The body weight |
3000KG |
|
B |
5-axis parameters： |
|
|
1 |
Fourth axis B axis rotation angle |
/Optional) |
|
2 |
Fifth axis C axis rotation angle |
/Optional) |
|
2-1 |
The repeatability of the B-axis and C-axis is |
/ |
|
2-2 |
The positioning accuracy of the B-axis and C-axis is |
/ |
|
3 |
Turntable response time |
/ |
|
4 |
Five-axis linkage mode |
/ |
|
C |
Machine tool configuration details brand parameters： |
|
|
1 |
System Configuration |
Taiwan SYNTEC 22MA absolute value system (Mitsubishi and Fanuc are optional) |
|
2 |
Spindle |
7.5KW spindle motor (high-precision and high-speed spindle) |
|
3 |
Ball Screw |
Taiwan Hiwin high precision grinding grade 3016 |
|
4 |
Linear Guides |
Taiwan Hiwin high precision and high rigidity guide rail H30 |
|
5 |
Servo unit |
Taiwan SYNTEC absolute servo motor 750W |
|
6 |
Screw bearings |
Taiwan TPI precision bearings |
|
7 |
Switching Power Supply |
Taiwan Mean Well |
|
8 |
Electrical switches |
China Chint |
|
9 |
Lubrication system |
Fully automatic butter and grease lubrication system |
|
10 |
Couplings |
China Hongruppe |
|
11 |
Automatic tool setting instrument |
China Hongruppe |
|
12 |
Handwheel |
China Hongruppe |
|
13 |
Frequency Converter |
China Quartet |
|
14 |
Spindle cooling system |
Water cooler with compressor |
|
15 |
Cooling pump head |
14M |
|
16 |
Disc servo tool magazine |
BT30 Clamp-arm servo tool magazine |
|
17 |
Machine tool processing chamber closed |
Fully enclosed |
|
18 |
Continuous operation time of equipment |
7*24 hours/week |
|
19 |
Four-axis and five-axis reducer |
Japanese four-axis and five-axis (precision ±30-60 arc seconds) |
|
NO. |
Product (name) |
Quantity |
Quantity |
|
1 |
RY-T6-ATC machine tool (including castings, sheet metal, and systems) |
1SET |
|
|
2 |
Spindle Cooling Machine |
1SET |
|
|
3 |
Working cooling oil pump |
1POS |
|
|
4 |
Toolbox |
1POS |
|
|
5 |
T-screws, clamps, spacers |
4SET |
|
|
6 |
Spindle lock tool holder |
1POS |
|
|
7 |
Spindle disassembly wrench |
1SET |
|
|
8 |
6-corner wrench |
1SET |
|
|
9 |
T11 handle |
3SET |
|
|
10 |
ER11 chuck |
3POS |
|
|
11 |
USB flash drive |
1POS |
|
|
12 |
screwdriver |
2POS |
|
-
Button Hydraulic Mould
-
Epoxy Mold
-
Copper doll mold
-
Injection steel mold
-

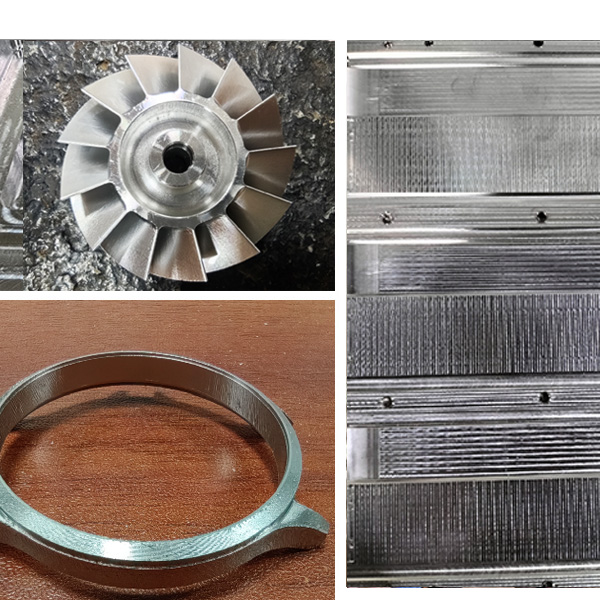

Precision Parts
-
Precision Parts
-
Precision Parts
-
Precision Parts
-
Watch Parts
-

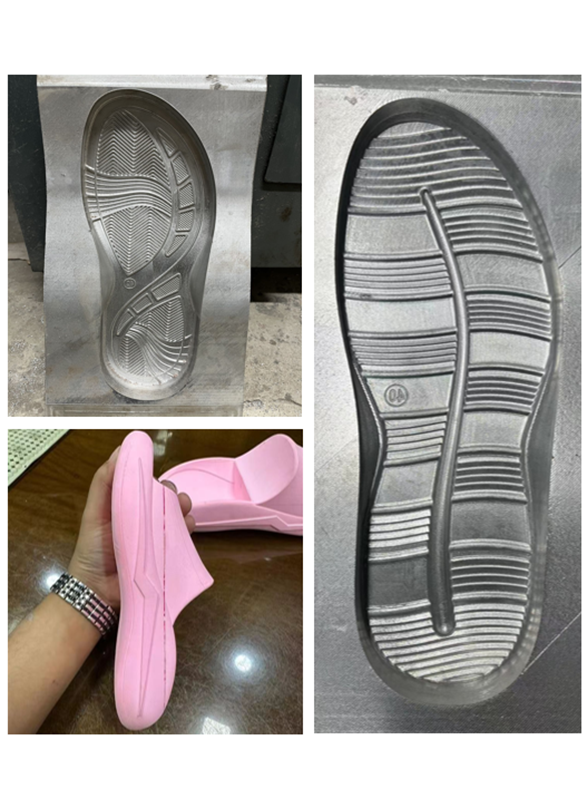

Shoe Model
-
Ship to Vietnam
-
Shipping to Japan
-
Shipping to Japan
