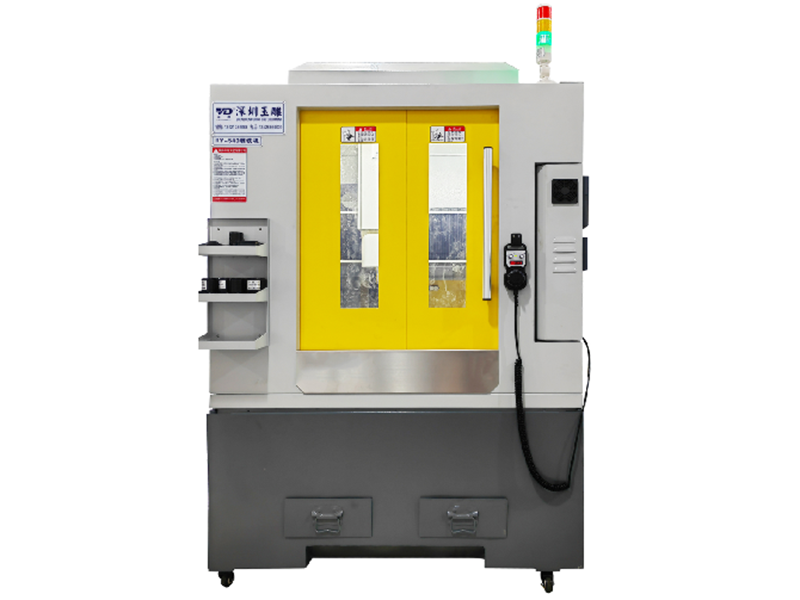

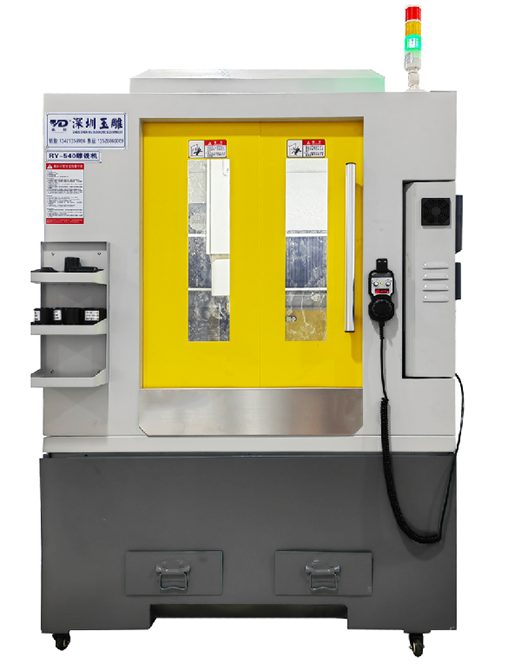

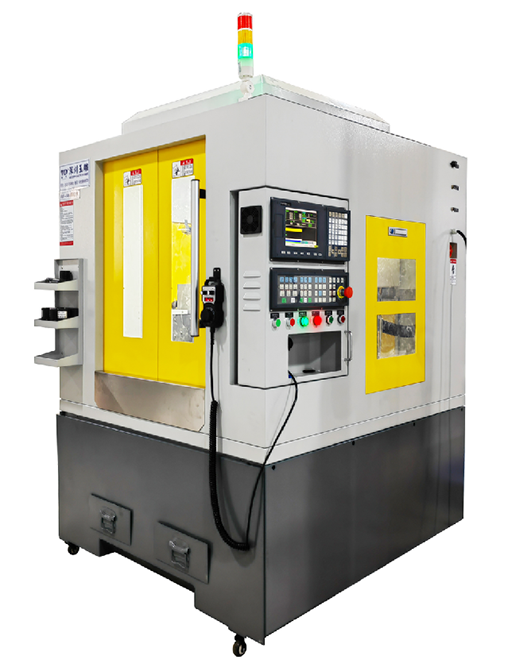

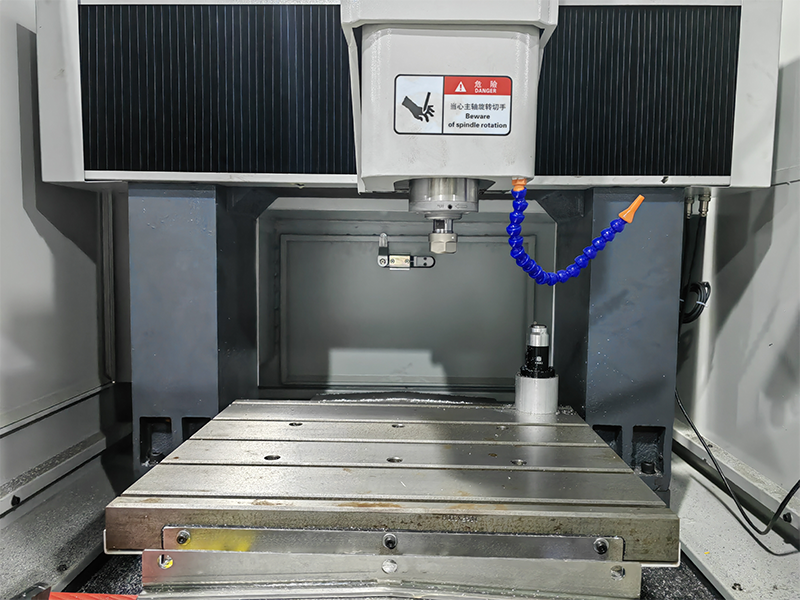

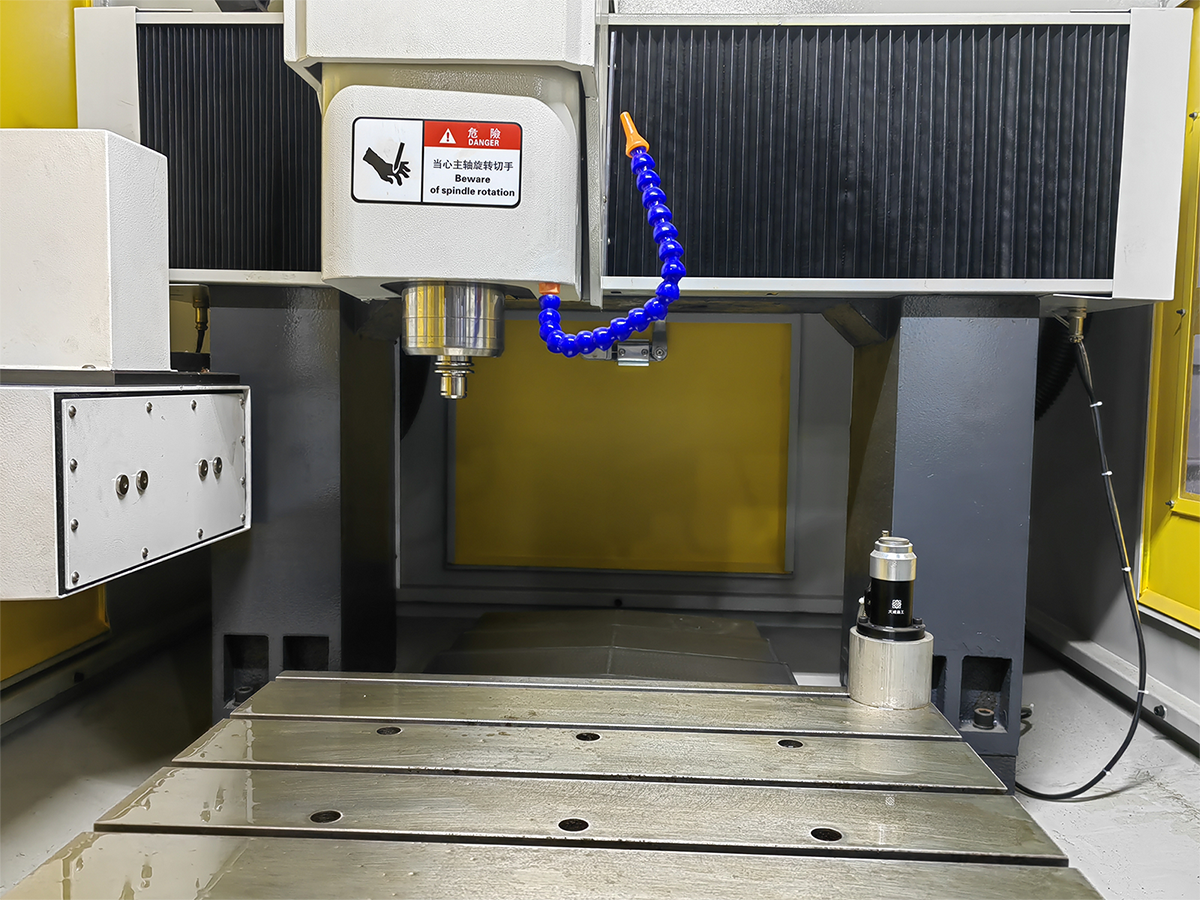

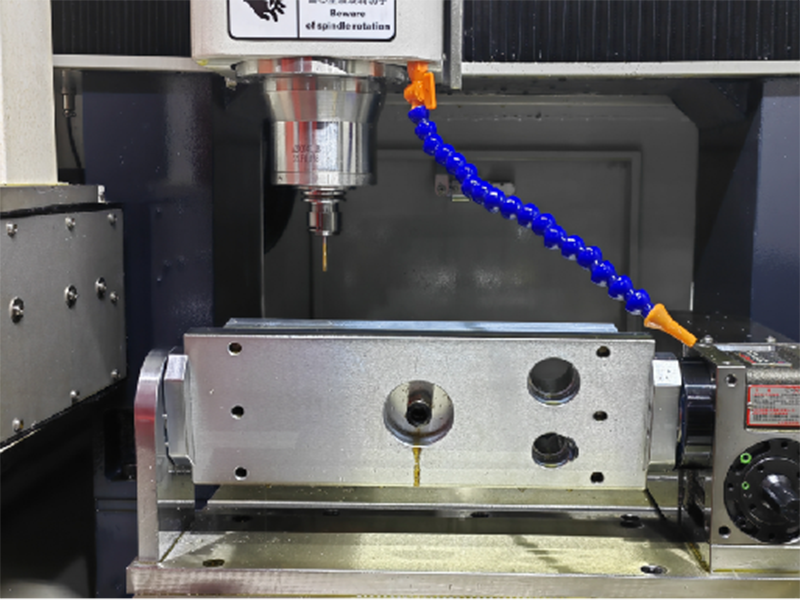

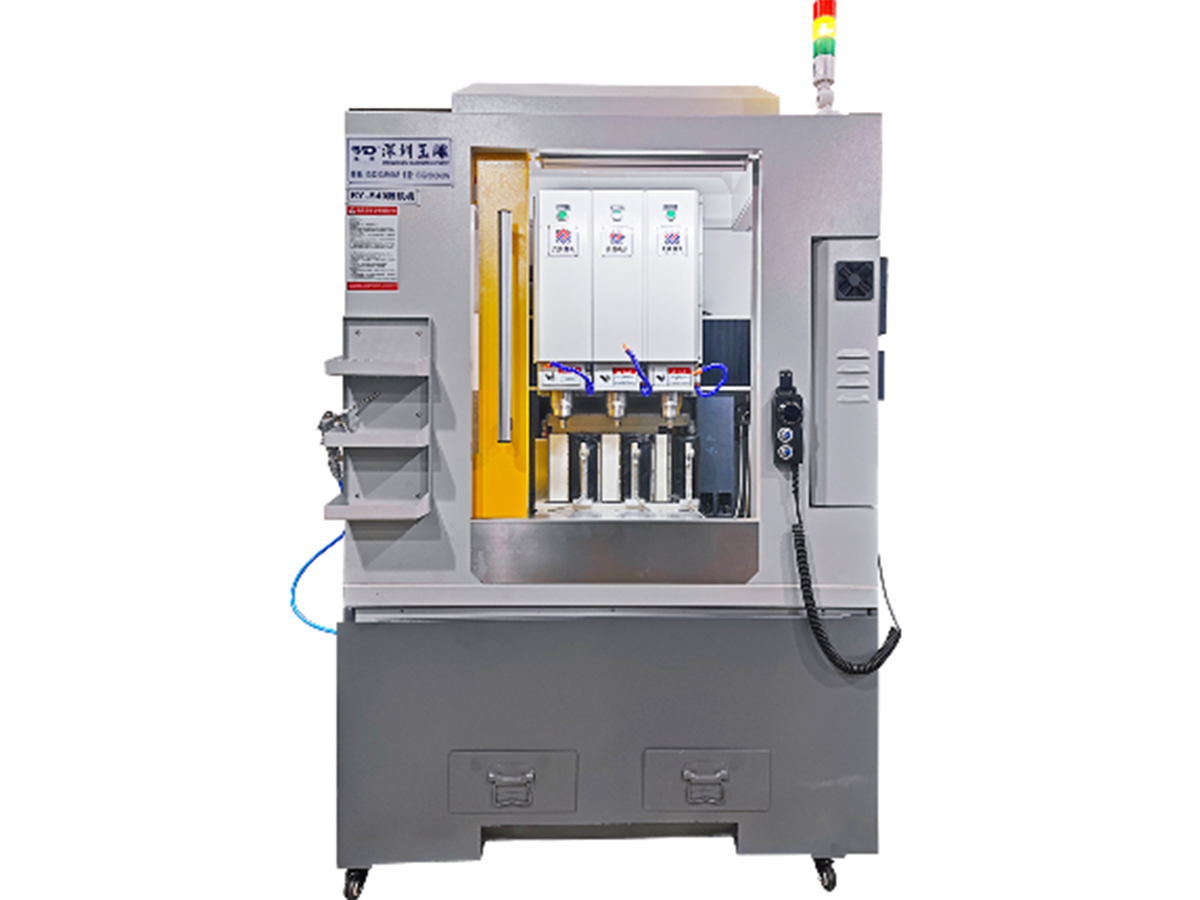

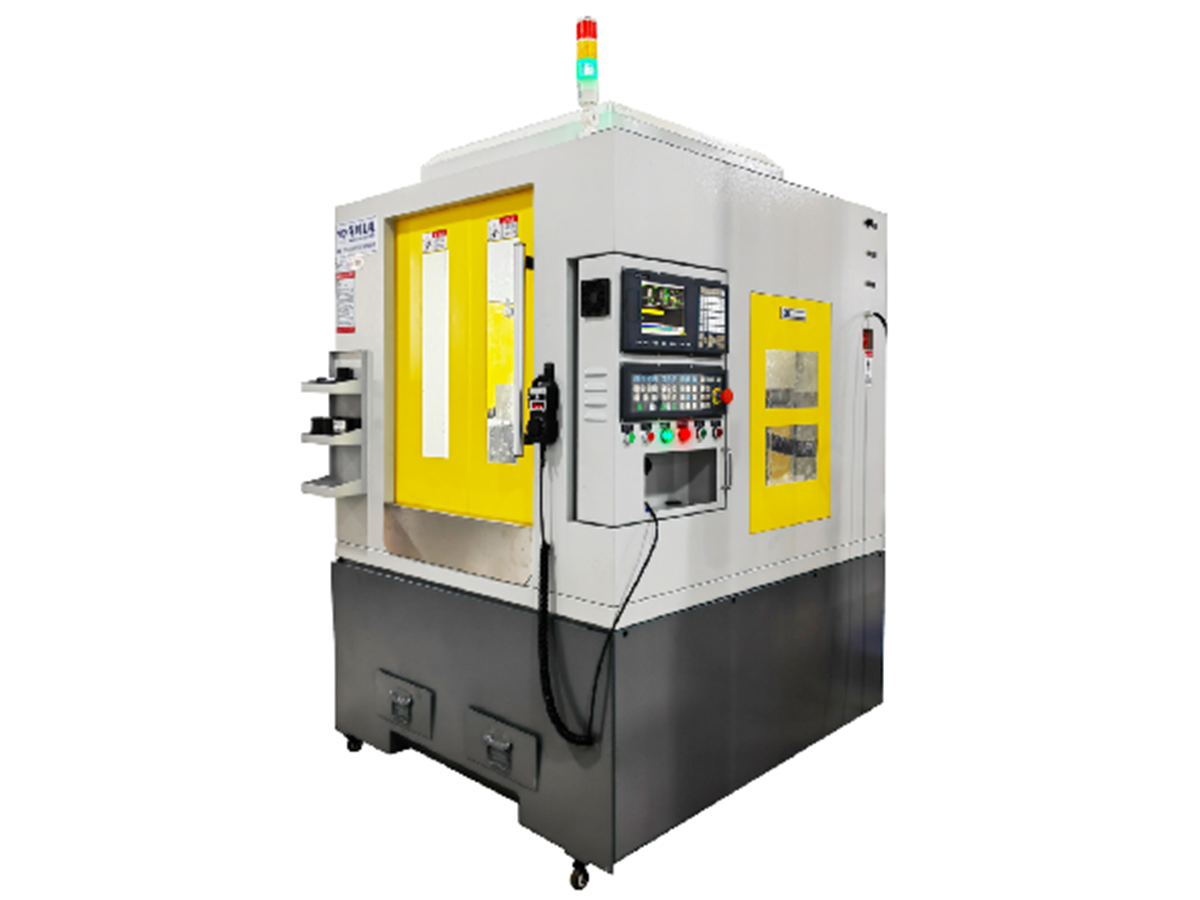

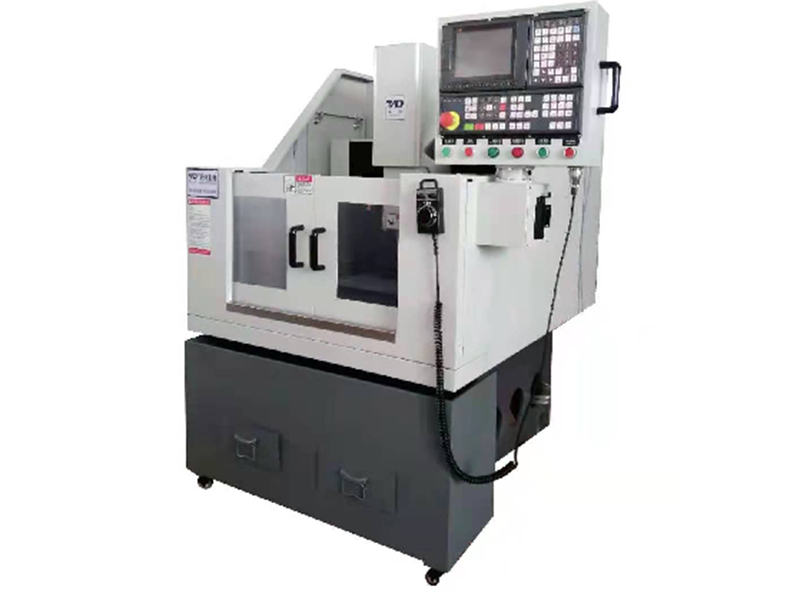

RY-540-ATC Precision CNC Engraving and Milling Machine
- Rough and finish machining of steel, aluminum, and copper molds
- Various mold manufacturing
- Precision parts manufacturing
- Engraving, milling, trimming, grinding, cutting, and drilling
- Strong rough machining capabilities
- High-speed finishing capabilities
- Equipped with ATC (Automatic Tool Changer) function
- Professional manufacturing of steel, copper, and aluminum molds
- Injection molding, die casting, shoe molds, and other steel mold manufacturing
- Precision parts production in the military industry
- Automotive parts production
- Precision hardware parts manufacturing
- 3C electronics industry (including glass and ceramics)
|
1 |
Table size |
500×400mm |
14 |
Positioning accuracy |
±0.006/300mm |
|
2 |
T-groove |
10×5×78mm |
15 |
Repetitive positioning accuracy |
±0.006/300mm |
|
3 |
The largest load |
200KG |
16 |
Machined surface accuracy |
≤Ra1.6 |
|
4 |
Maximum feed heigh |
250mm |
17 |
The machining accuracy |
±0.01mm |
|
5 |
Spindle to table distance |
80－250mm |
18 |
Working voltage |
380V±10% 50/60HZ |
|
6 |
Triaxial travel X/Y/Z |
500/400/170mm |
19 |

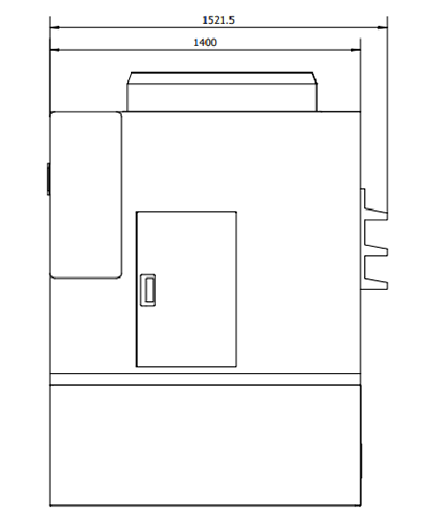

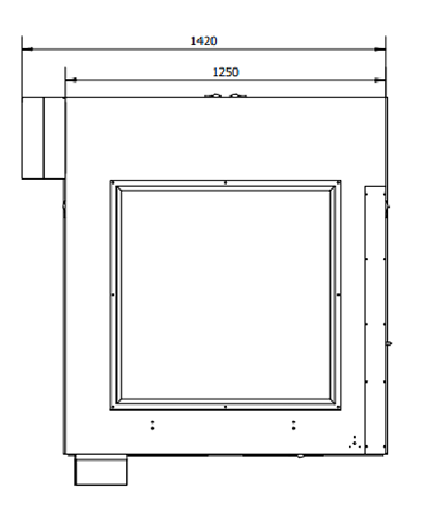

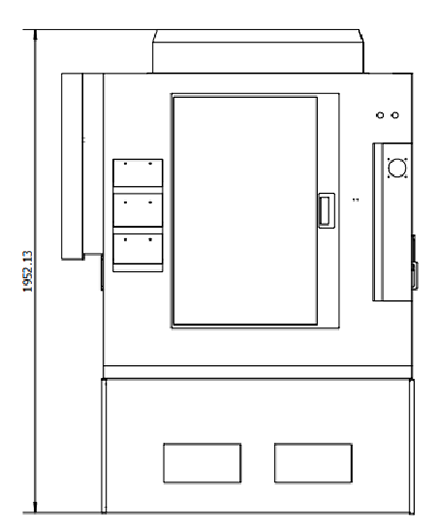

Machine size (l * W * H) |
1450×1600×2100mm |
|
7 |
The spindle diameter |
Ǿ100 |
20 |
The body weight |
1500KG |
|
8 |
Spindle speed |
36000RPM |
21 |
The system configuration |
Taiwan SYNTEC 6GA -E |
|
9 |
Spindle motor power |
6 KW/7.5KW |
22 |
Servo unit |
Panasonic Servo motor |
|
10 |
Fast moving rate X/Y/Z |
12/12/12m/Min |
23 |
Ball screw |
Japan NSK /THK |
|
11 |
Processing speed |
0－12m/Min |
24 |
Linear guide |
Taiwan HIWIN/PMI |
|
12 |
Spindle tool library capacity |
8 |
25 |
The spindle taper |
ISO25 |
|
13 |
Tool change time |
≤5S |
26 |
Knife library classes |
Servo disc rotation |
-
-
-
-
-

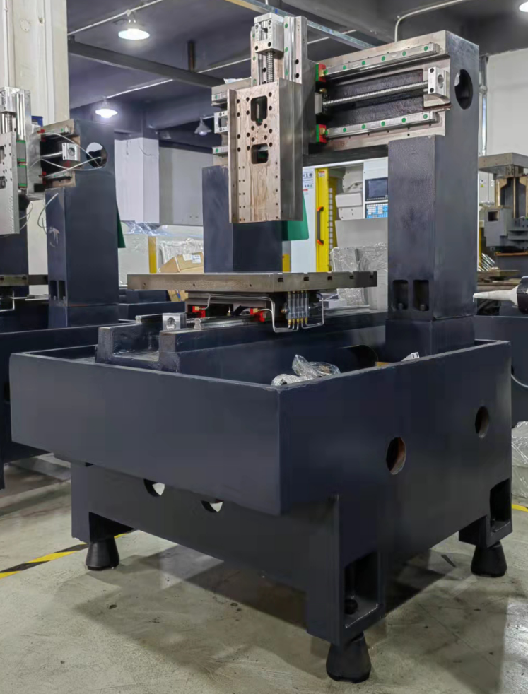

Cast iron body weight 1500KG
-

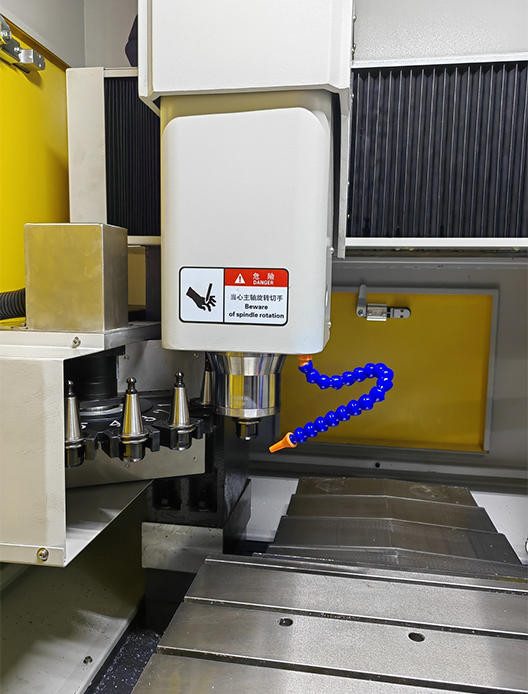

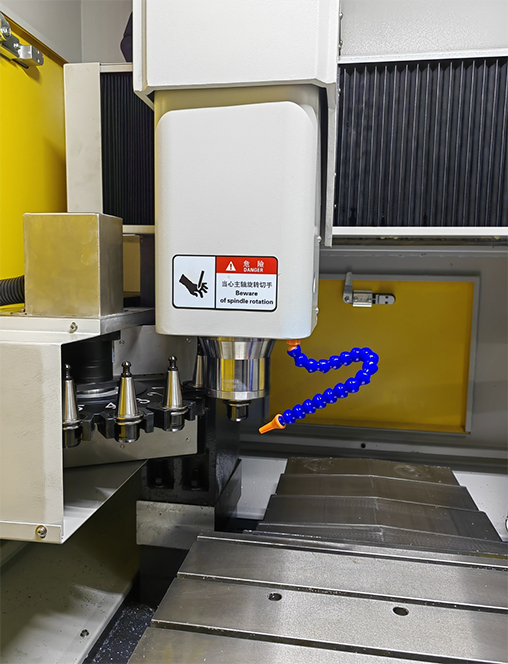

ISO25 tool holder, 8 tool magazines
-
Workbench travel XYZ500*400*170MM
-
Taiwan's new generation 6GA-E bus absolute value control system
|
A |
Machine parameters: |
|
|
1 |
The machine body and all parts are made of nano castings. |
|
|
2 |
Table size |
500×400mm |
|
3 |
T-groove |
10×5×78mm |
|
4 |
The largest load |
300KG |
|
5 |
Maximum feed heigh |
250mm |
|
6 |
Spindle to table distance |
80－250mm |
|
7 |
Triaxial travel X/Y/Z |
500/400/170mm |
|
8 |
The spindle diameter |
Ǿ100/Ǿ80 |
|
9 |
Spindle speed |
0-36000/40000RPM |
|
10 |
Spindle motor power |
6KW (optional Ǿ80, 4KW 40000 rpm ISO20 spindle) |
|
11 |
Spindle tool library capacity |
ISO25 8 per head (ISO20 8 per head) |
|
12 |
Tool change time |
≤6S |
|
13 |
The spindle taper |
ISO25/ISO20 |
|
14 |
Knife library classes |
Disc servo tool magazine 8 tools |
|
15 |
Fast moving rate X/Y/Z |
12/12/12m/Min |
|
16 |
Processing speed |
6－12m/Min |
|
17 |
Positioning accuracy |
±0.006/300mm |
|
18 |
Repetitive positioning accuracy |
±0.006/300mm |
|
19 |
Machined surface accuracy |
≤Ra0.8－1.6 |
|
20 |
The machining accuracy |
±0.01mm (calibrated by Renishaw ballbar, UK) |
|
21 |
Working voltage |
380V±10%/220V±10% |
|
22 |
Machine size (l * W * H) |
1450×1600×2100mm |
|
23 |
The body weight |
1500KG |
|
B |
5-axis parameters： |
|
|
1 |
Fourth axis B axis rotation angle |
/Optional) |
|
2 |
Fifth axis C axis rotation angle |
/Optional) |
|
2-1 |
The repeatability of the B-axis and C-axis is |
/ |
|
2-2 |
The positioning accuracy of the B-axis and C-axis is |
/ |
|
3 |
Turntable response time |
/ |
|
4 |
Five-axis linkage mode |
/ |
|
C |

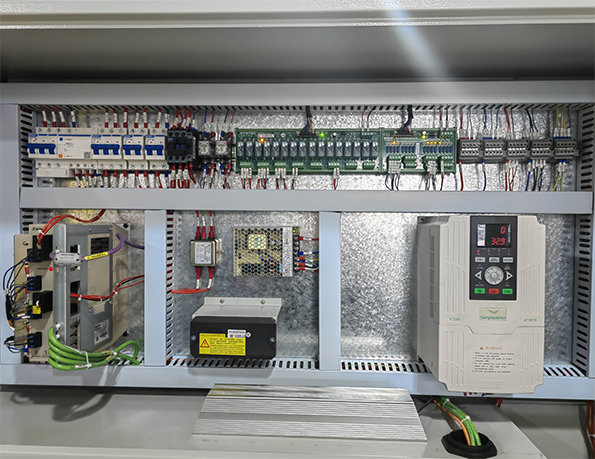

Machine tool configuration details brand parameters： |
|
|
1 |
System Configuration |
Taiwan SYNTEC 6GA-E absolute value (optional 22MA) |
|
2 |
Spindle |
6KW/4KW spindle motor (high-precision and high-speed spindle) |
|
3 |
Ball Screw |
Japan NSK grinding grade 2005 |
|
4 |
Linear Guides |
Taiwan Hiwin high precision and high rigidity guide rail H25 |
|
5 |
Servo unit |
Japan Panasonic absolute servo motor 750W |
|
6 |
Screw bearings |
Taiwan TPI precision bearings |
|
7 |
Switching Power Supply |
Taiwan Mean Well |
|
8 |
Electrical switches |
China Chint |
|
9 |
Lubrication system |
Fully automatic butter and grease lubrication system |
|
10 |
Couplings |
China Hongruppe |
|
11 |
Automatic tool setting instrument |
China Hongruppe |
|
12 |
Handwheel |
China Hongruppe |
|
13 |
Frequency Converter |
China Quartet |
|
14 |
Spindle cooling system |
Water cooler with compressor |
|
15 |
Cooling pump head |
7M |
|
16 |
Disc servo tool magazine |
ISO25 8 per head (ISO20 8 per head) |
|
17 |
Machine tool processing chamber closed |
Fully enclosed |
|
18 |
Continuous operation time of equipment |
7*24 hours/week |
|
19 |
Four-axis and five-axis reducer |
Japanese four-axis and five-axis (precision ±30-60 arc seconds) |
|
NO. |
Product (name) |
Quantity |
Quantity |
|
1 |
RY-540-ATC machine tool (including castings, sheet metal, and systems) |
1SET |
|
|
2 |
Spindle Cooling Machine |
1SET |
|
|
3 |
Working cooling oil pump |
1POS |
|
|
4 |
Toolbox |
1POS |
|
|
5 |
T-screws, clamps, spacers |
4SET |
|
|
6 |
Spindle lock tool holder |
1POS |
|
|
7 |
Spindle disassembly wrench |
1SET |
|
|
8 |
6-corner wrench |
1SET |
|
|
9 |
T11 handle |
3SET |
|
|
10 |
ER11 chuck |
3POS |
|
|
11 |
USB flash drive |
1POS |
|
|
12 |
screwdriver |
2POS |
|
-

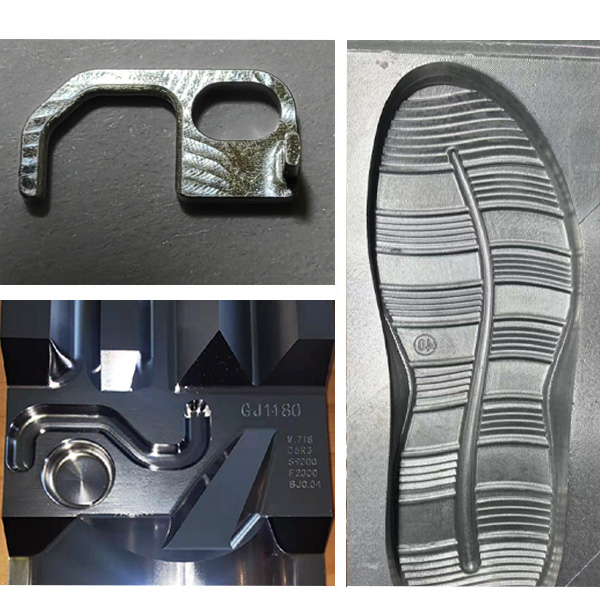

Hot stamping
-
Hot stamping
-
Button Hydraulic Mould
-
Epoxy Mold
-
Copper doll mold
-
Injection steel mold
-
Precision Parts
-
Precision Parts
-
Relief Mold
-
Shoe Model
-
Ship to Vietnam
-
Shipping to Japan
-
Shipping to Japan
