RY-400-ATC-1.8KW Precision CNC Engraving and Milling Machine
- Small-scale rough and finish machining of steel, aluminum, and copper molds
- Manufacturing of various molds
- Production of precision parts

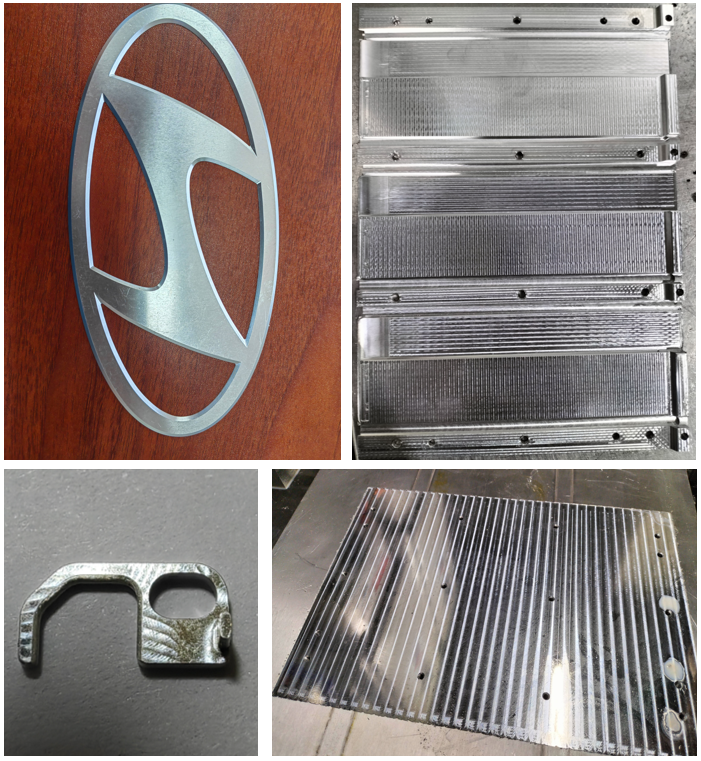

- Capable of engraving, milling, cutting, planing, and drilling
- Steel, copper, and aluminum mold manufacturing
- Shoe mold manufacturing
- Epoxy mold manufacturing
- Hot stamping mold manufacturing
- Seal and medal making
- Printing fonts
- 3C electronic parts manufacturing (including glass and ceramics)
- Trademark and brand logo making
- First edition manufacturing
- Other related industries
|
1 |
Table size |
400×400mm |
14 |
Positioning accuracy |
±0.006/300mm |
|
2 |
T-groove |
10×5×78mm |
15 |
Repetitive positioning accuracy |
±0.006/300mm |
|
3 |
The largest load |
500KG |
16 |
Machined surface accuracy |
≤Ra1.6 |
|
4 |
Maximum feed heigh |
250mm |
17 |
The machining accuracy |
±0.01mm |
|
5 |
Spindle to table distance |
130－250mm |
18 |
Working voltage |
220V±10% 50/60HZ |
|
6 |
Triaxial travel X/Y/Z |
400/400/120mm |
19 |
Machine size (l * W * H) |
750×900×1700mm |
|
7 |
The spindle diameter |
Ǿ62 |
20 |
The body weight |
300KG |
|
8 |
Spindle speed |
60000RPM |
21 |
The system configuration |
Taiwan LNC2800 |
|
9 |
Spindle motor power |
1.8KW |
22 |
Servo unit |
Zhongcheng servo motor |
|
10 |
Fast moving rate X/Y/Z |
12/12/12m/Min |
23 |
Ball screw |
Taiwan precision screw |
|
11 |
Processing speed |
0－12m/Min |
24 |
Linear guide |
Taiwan precision guide rail |
|
12 |
Spindle tool library capacity |
5 |
25 |
The spindle taper |
Straight handle Ǿ6MM |
|
13 |
Tool change time |
8S |
26 |
Knife library classes |
Workbench straight tool magazine |
-

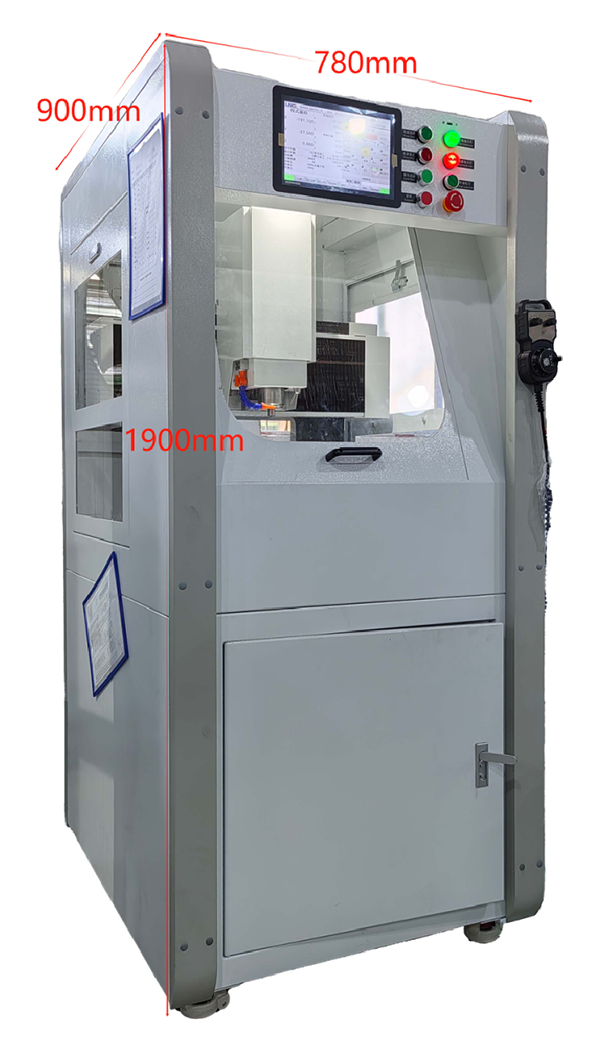

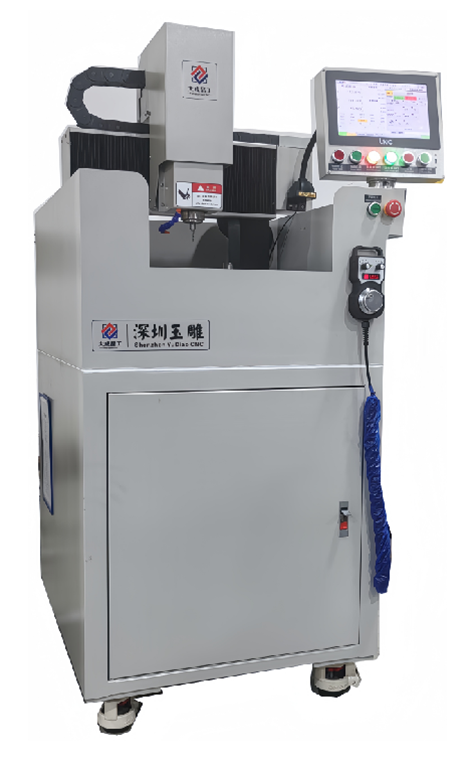

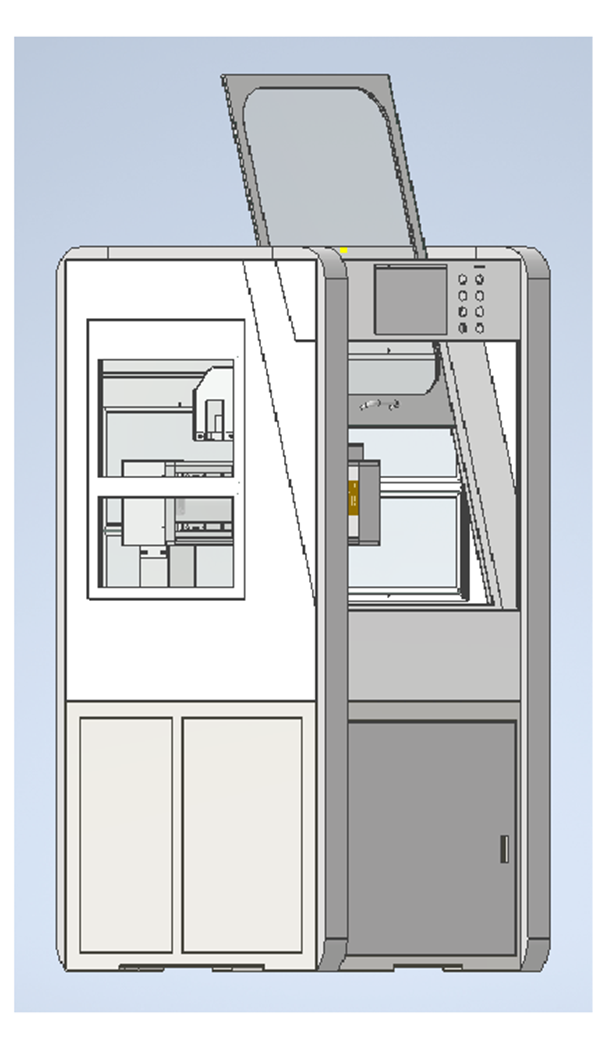

RY-400-ATC-1.8KW half-cover model
-

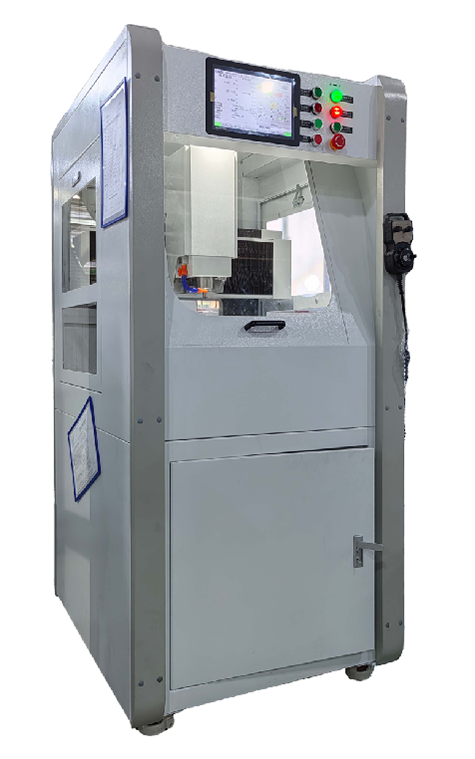

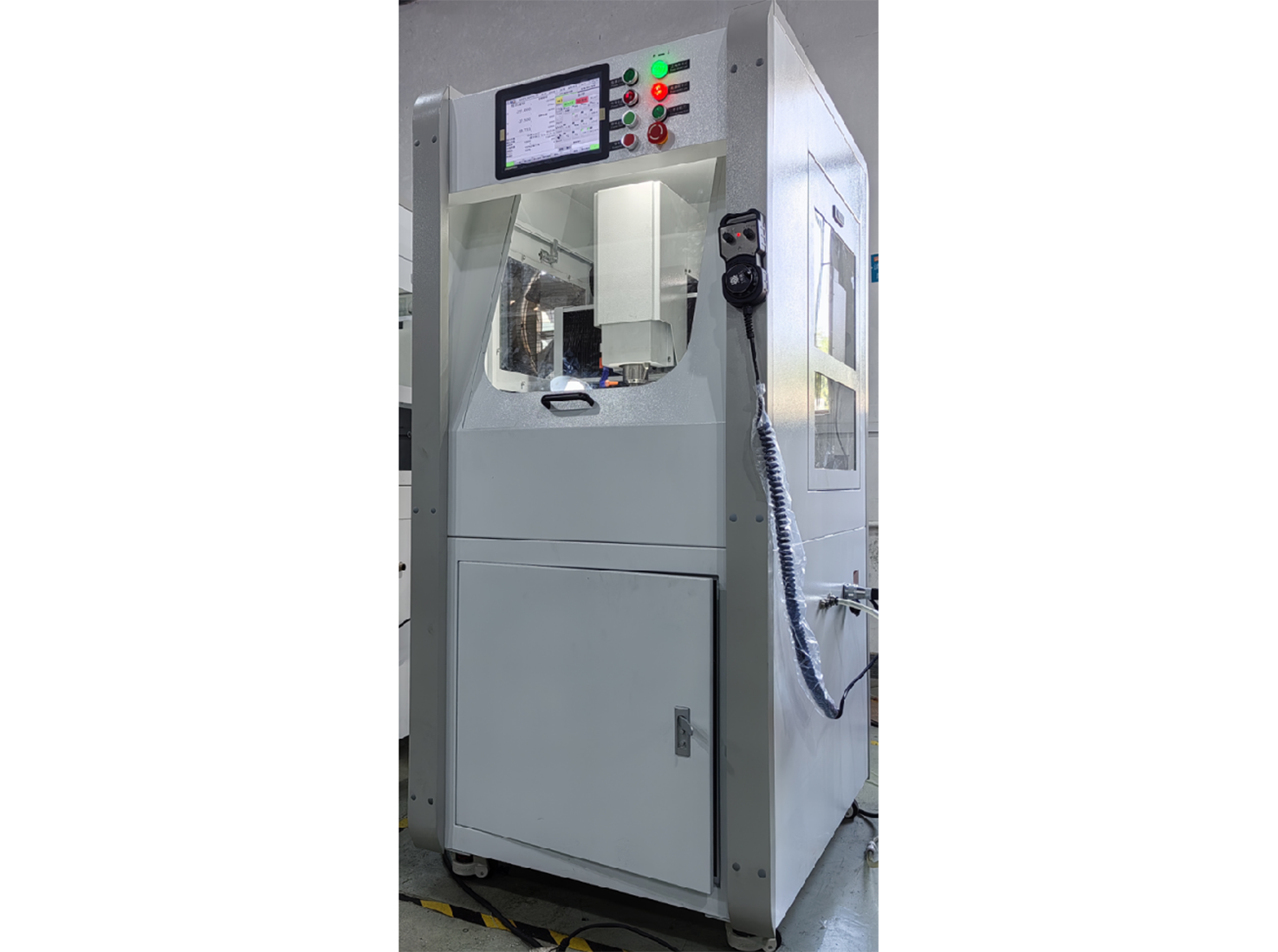

RY-400-ATC-1.8KW full cover model
-

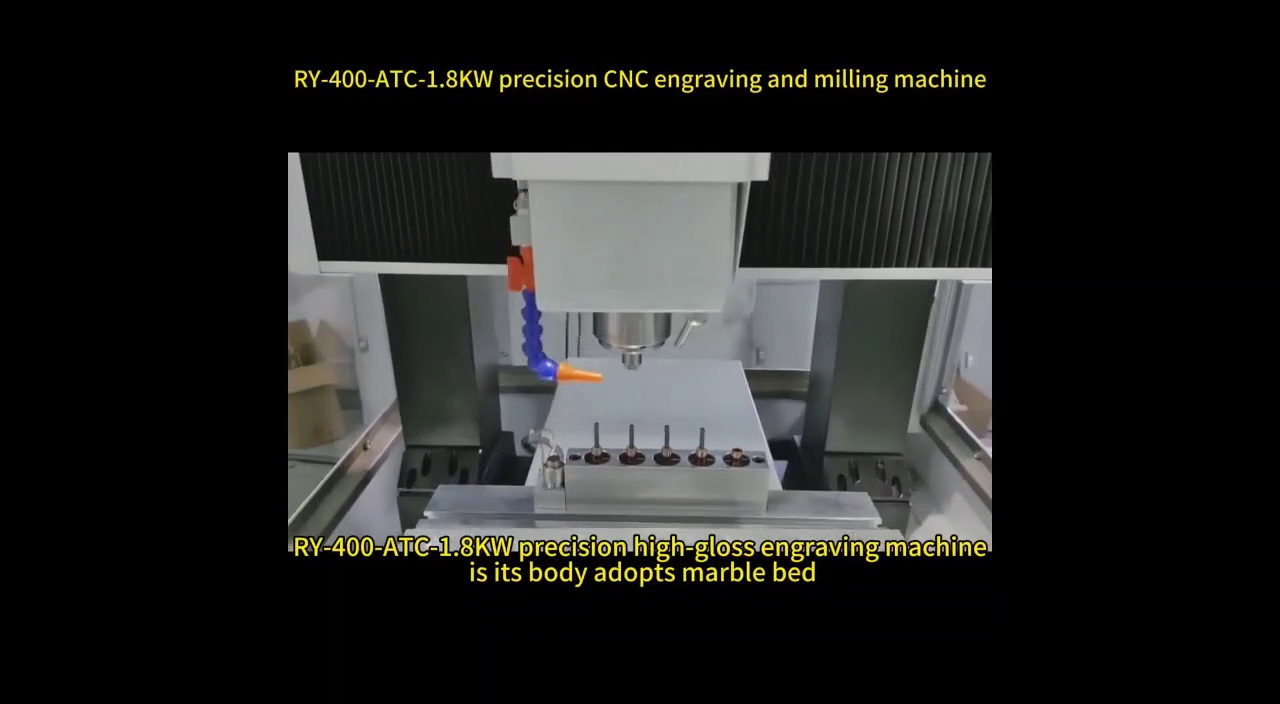

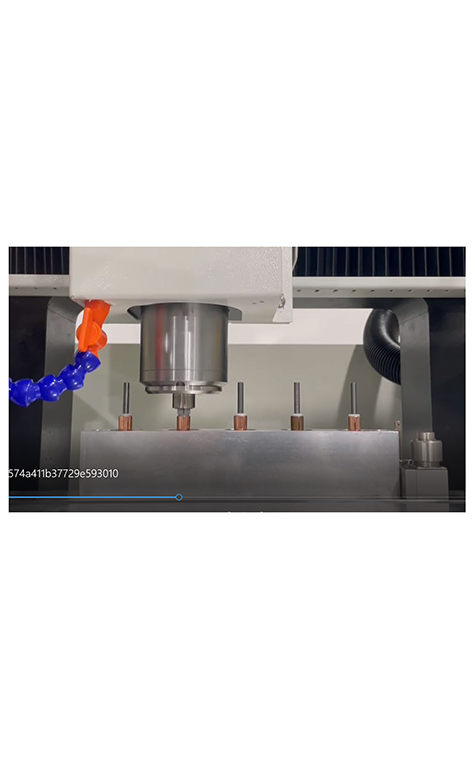

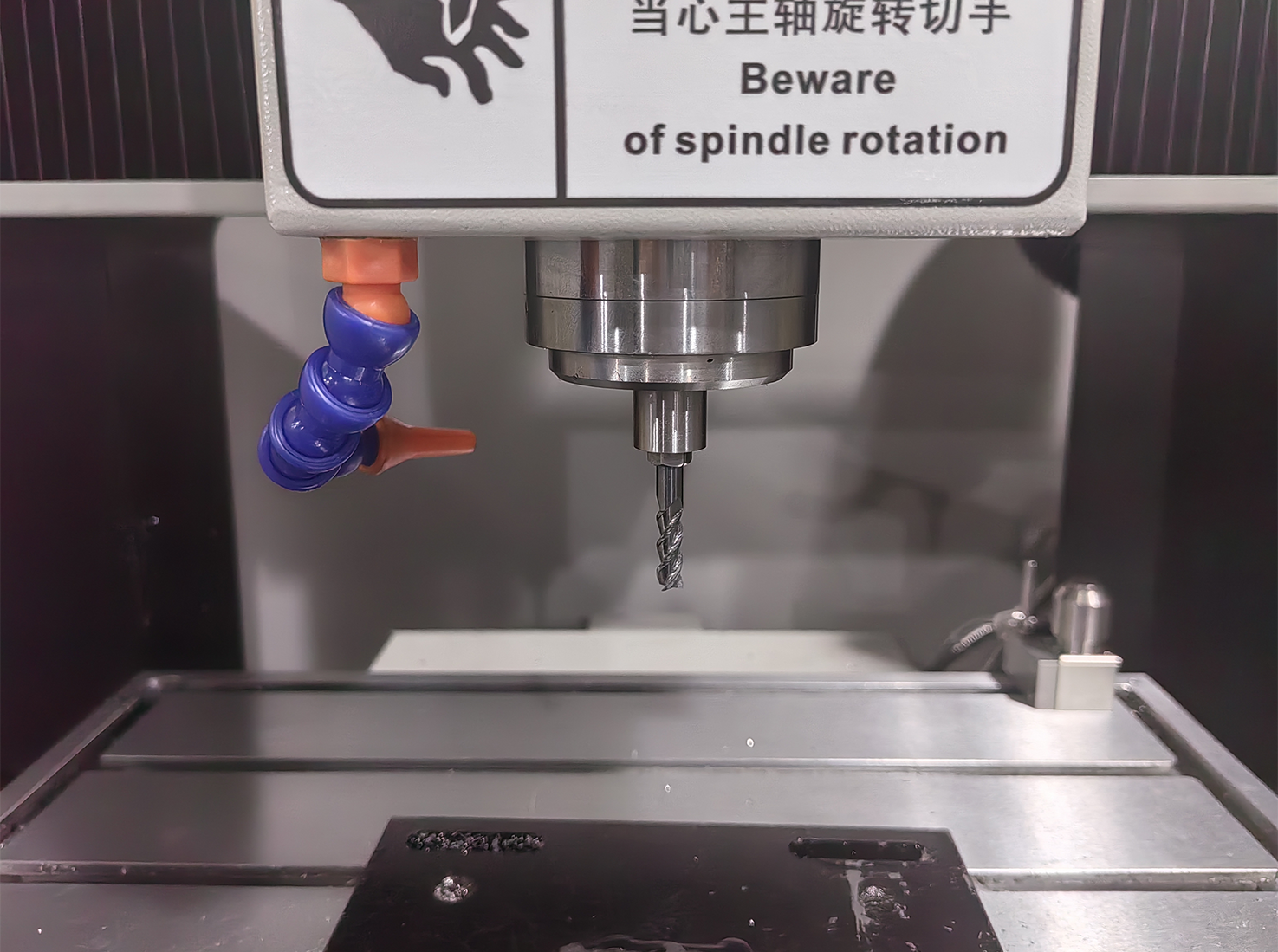

RY-400-ATC-1.8KW ATC automatic tool changer tool library
-
Workbench travel XYZ400*400*120MM
-

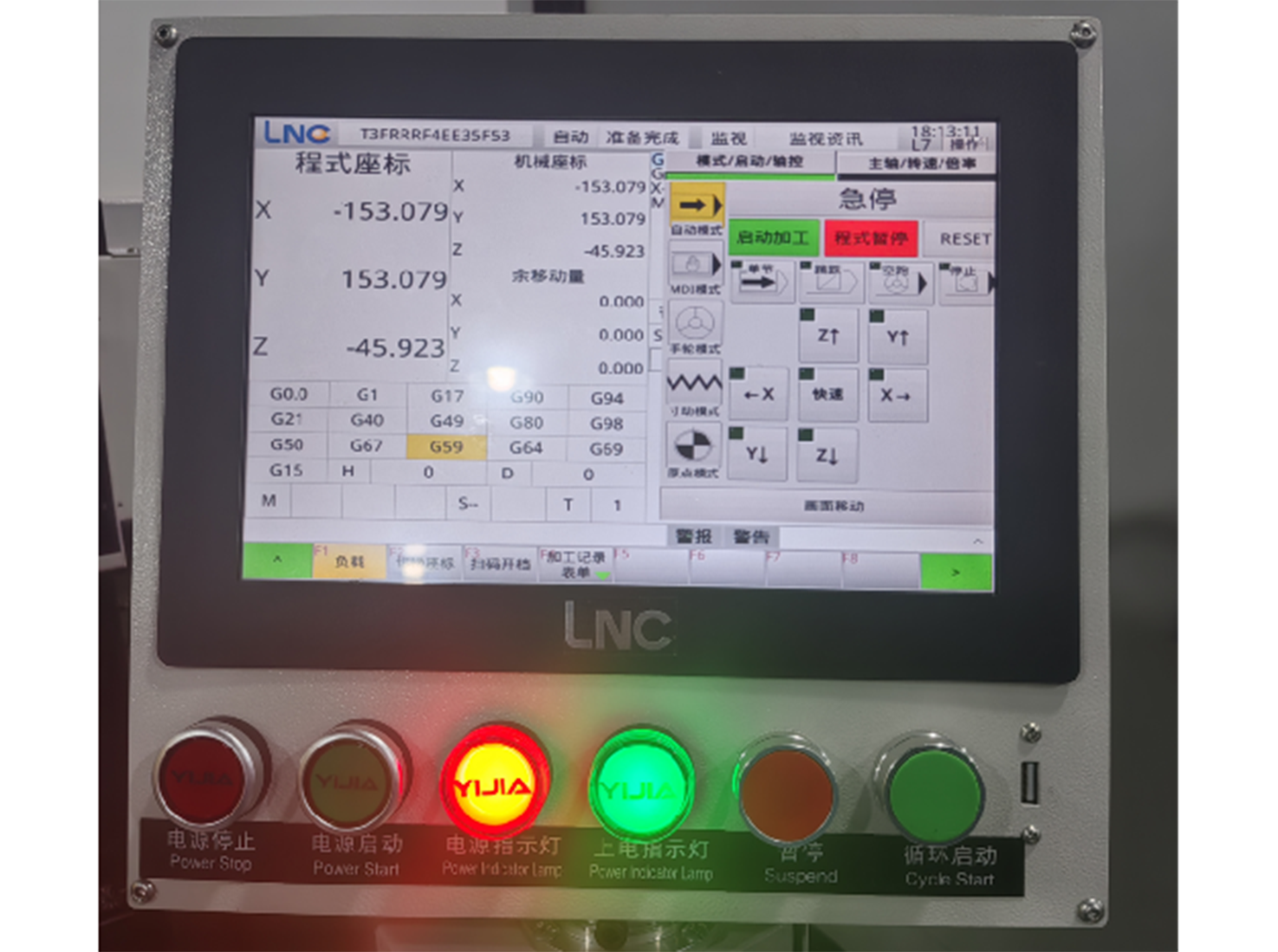

Taiwan LNC touch screen control system
-
High-precision high-speed spindle with 60,000 revolutions per minute
-

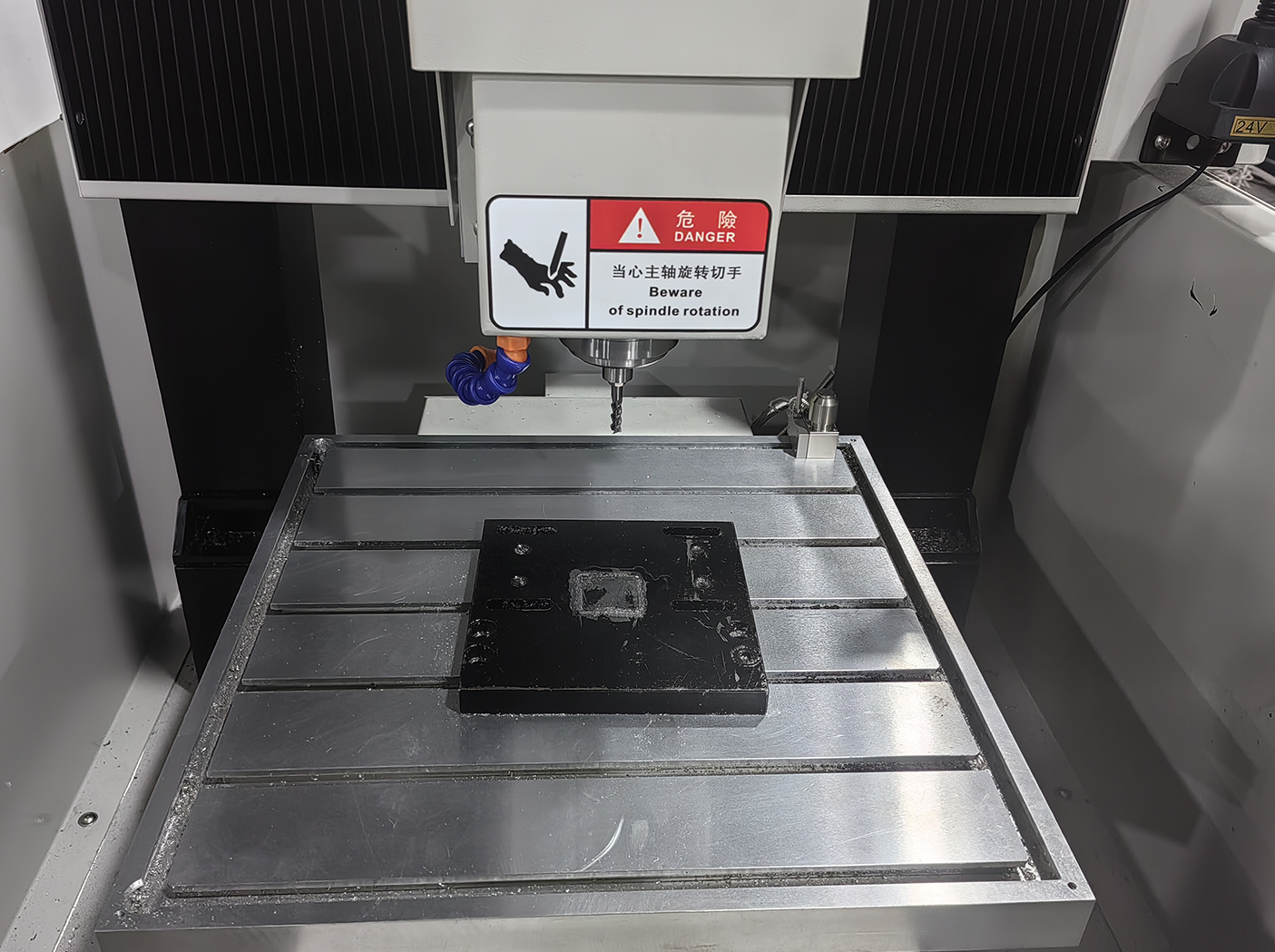

Fully enclosed operating compartment
|
A |
Machine parameters: |
|
|
1 |
The machine body is made of granite, and all parts are made of 7075 aluminum plate. |
|
|
2 |
Table size |
400×400mm |
|
3 |
T-groove |
10×5×78mm |
|
4 |
The largest load |
50KG |
|
5 |
Maximum feed heigh |
200mm |
|
6 |
Spindle to table distance |
80－200mm |
|
7 |
Triaxial travel X/Y/Z |
400/400/120mm |
|
8 |
The spindle diameter |
Ǿ62 |
|
9 |
Spindle speed |
0-60000RPM |
|
10 |
Spindle motor power |
1.8KW (straight shank pneumatic tool change high-speed spindle) |
|
11 |
Spindle tool library capacity |
5 straight shank changeable knives as standard |
|
12 |
Tool change time |
≤10S |
|
13 |
The spindle taper |
Ǿ6mm |
|
14 |
Knife library classes |
Straight shank tool changer Ǿ6mm |
|
15 |
Fast moving rate X/Y/Z |
12/12/12m/Min |
|
16 |
Processing speed |
0－6 m/Min |
|
17 |
Positioning accuracy |
±0.006/300mm |
|
18 |
Repetitive positioning accuracy |
±0.006/300mm |
|
19 |
Machined surface accuracy |
≤Ra0.8－1.6 |
|
20 |
The machining accuracy |
±0.01mm (calibrated by Renishaw ballbar, UK) |
|
21 |
Working voltage |
220V±10%/1100V±10% |
|
22 |
Machine size (l * W * H) |
780×900×1700mm |
|
23 |
The body weight |
500KG |
|
B |
5-axis parameters： |
|
|
1 |
Fourth axis B axis rotation angle |
/ |
|
2 |
Fifth axis C axis rotation angle |
/ |
|
2-1 |
The repeatability of the B-axis and C-axis is |
/ |
|
2-2 |
The positioning accuracy of the B-axis and C-axis is |
/ |
|
3 |
Turntable response time |
/ |
|
4 |
Five-axis linkage mode |
/ |
|
C |
Machine tool configuration details brand parameters： |
|
|
1 |
System Configuration |
Taiwan Baoyuan 2800 touch screen bus absolute value |
|
2 |
Spindle |
1.8KW spindle motor (high-precision and high-speed spindle) |
|
3 |
Ball Screw |
Taiwan grinding grade 2005 |
|
4 |
Linear Guides |
Taiwan high precision and high rigidity guide rail H25 |
|
5 |
Servo unit |
Inovance Absolute Servo Motor 400W |
|
6 |
Screw bearings |
Taiwan TPI precision bearings |
|
7 |
Switching Power Supply |
Taiwan Mean Well |
|
8 |
Electrical switches |
China Chint |
|
9 |
Lubrication system |
/ |
|
10 |
Couplings |
China Hongruppe |
|
11 |
Automatic tool setting instrument |
China Hongruppe |
|
12 |
Handwheel |
China Hongruppe |
|
13 |
Frequency Converter |
China Quartet |
|
14 |
Spindle cooling system |
Air-cooled water chiller |
|
15 |
Cooling pump head |
7M |
|
16 |
Straight shank tool changer |
5 straight shank changeable knives as standard |
|
17 |
Machine tool processing chamber closed |
Fully enclosed |
|
18 |
Continuous operation time of equipment |
7*24 hours/week |
|
19 |
Four-axis and five-axis reducer |
Japanese four-axis and five-axis (precision ±30-60 arc seconds) |
|
NO. |
Product (name) |
Quantity |
Quantity |
|
1 |
RY-540-ATC machine tool (including castings, sheet metal, and systems) |
1SET |
|
|
2 |
Spindle Cooling Machine |
1SET |
|
|
3 |
Working cooling oil pump |
1POS |
|
|
4 |
Toolbox |
1POS |
|
|
5 |
T-screws, clamps, spacers |
4SET |
|
|
6 |
6-corner wrench |
1SET |
|
|
7 |
USB flash drive |
1POS |
|
|
8 |
screwdriver |
2POS |
|
-
