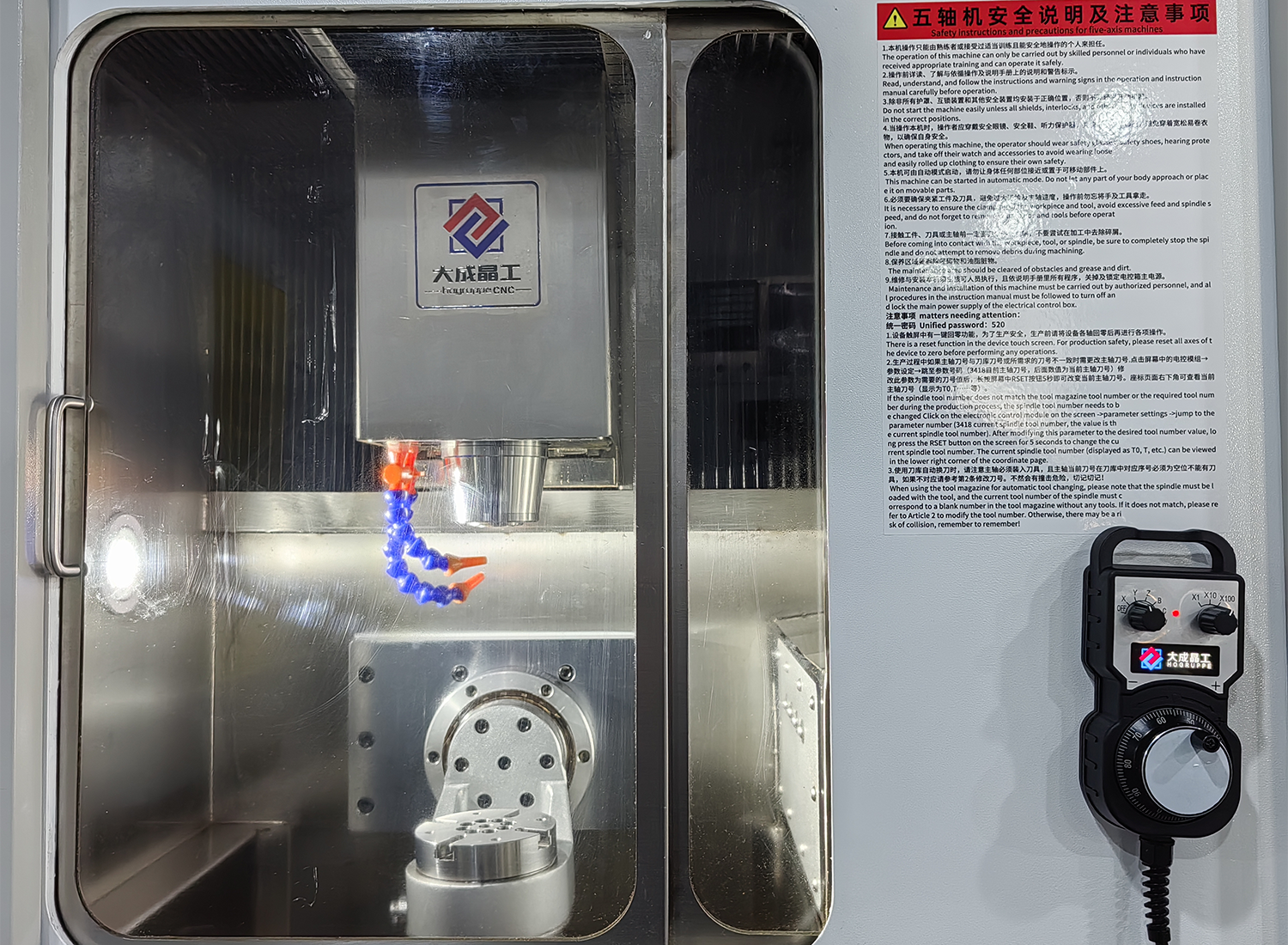

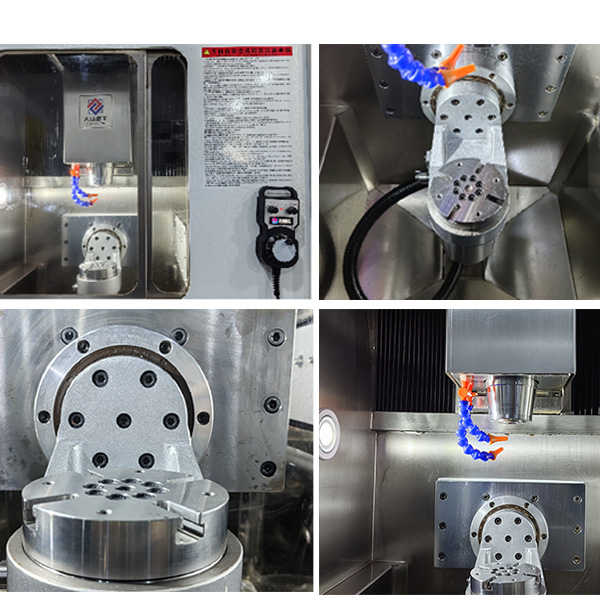

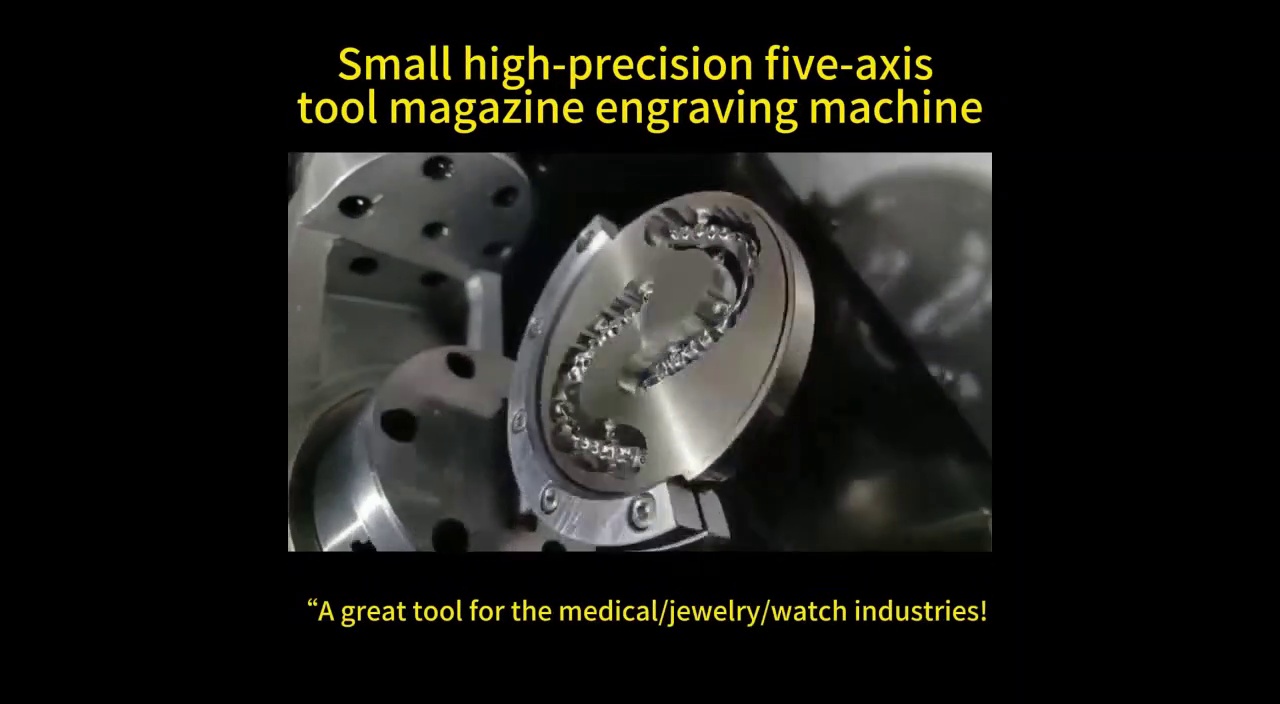

RY-150-ATC-5 Small 5-Axis Precision CNC Engraving and Milling Machine
- Equipped with gold and precious metal recovery capabilities, achieving a gold recovery rate of 999‰.
- Capable of turning, engraving, milling, cutting, planing, and drilling.
- Possesses strong high-speed precision machining capabilities.
- Can perform five-axis linkage functions using G-code.
- Equipped with ATC (Automatic Tool Changer) function
- Professional processing of gold bracelets and rings for jewelry.
- Professional manufacturing of dental and other medical devices.
- Precision parts manufacturing for high-end watches.
- High-gloss product finishing.
- Manufacturing of complex small metal parts.
|
1 |
Table size |
Ǿ150mm |
14 |
Positioning accuracy |
±0.006/300mm |
|
2 |
T-groove |
/ |
15 |
Repetitive positioning accuracy |
±0.006/300mm |
|
3 |
The largest load |
10KG |
16 |
Machined surface accuracy |
≤Ra1.6 |
|
4 |
Maximum feed heigh |
200mm |
17 |
The machining accuracy |
±0.01mm |
|
5 |
Spindle to table distance |
30－200mm |
18 |
Working voltage |
220V±10% |
|
6 |
Triaxial travel X/Y/Z |
200/170/170mm |
19 |

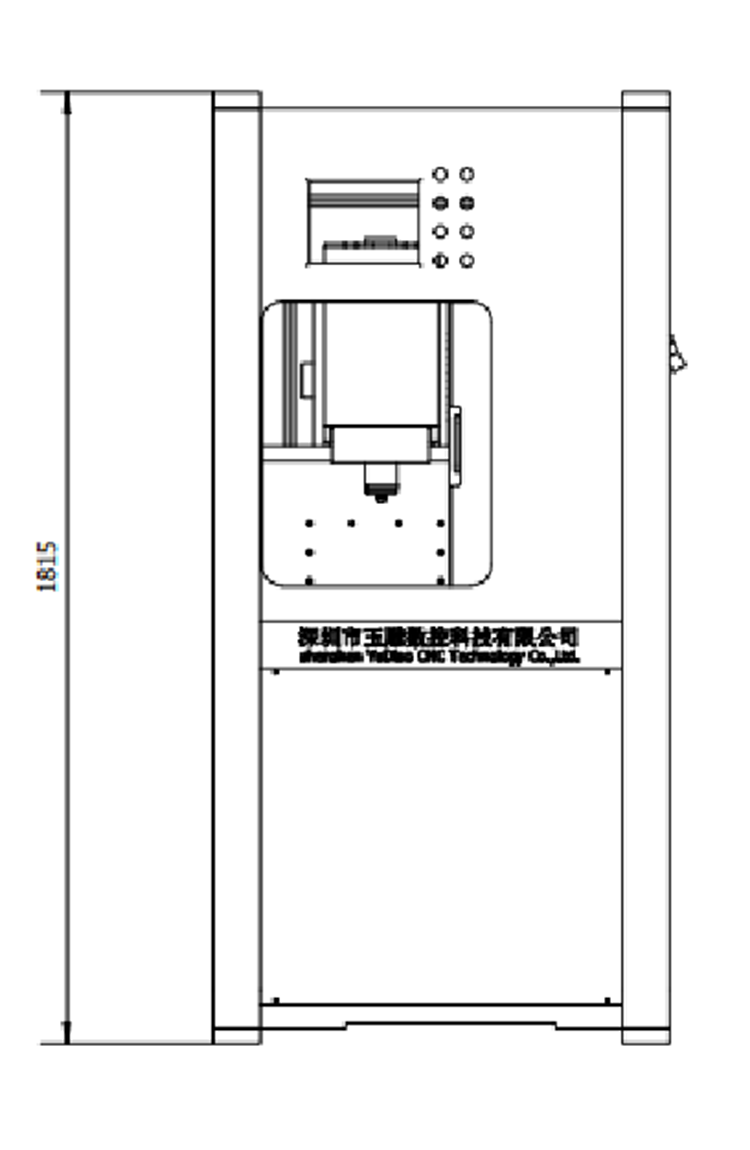

Machine size (l * W * H) |
900×900×1900mm |
|
7 |
The spindle diameter |
Ǿ80/Ǿ62mm |
20 |
The body weight |
500KG |
|
8 |
Spindle speed |
40000/60000RPM |
21 |
The system configuration |
Taiwan SYNTEC HC 8E-S absolute value |
|
9 |
Spindle motor power |
4KW/2.5KW |
22 |
Servo unit |
Inovance servo motor drive |
|
10 |
Fast moving rate X/Y/Z |
12/12/12m/Min |
23 |
Ball screw |
Taiwan TBI precision screw |
|
11 |
Processing speed |
0－12m/Min |
24 |
Linear guide |
Taiwan brand precision guide rail |
|
12 |
Spindle tool library capacity |
12 |
25 |
The spindle taper |
ISO20/T11 |
|
13 |
Tool change time |
≤5S |
26 |
Knife library classes |
Servo disc rotation |
|
|

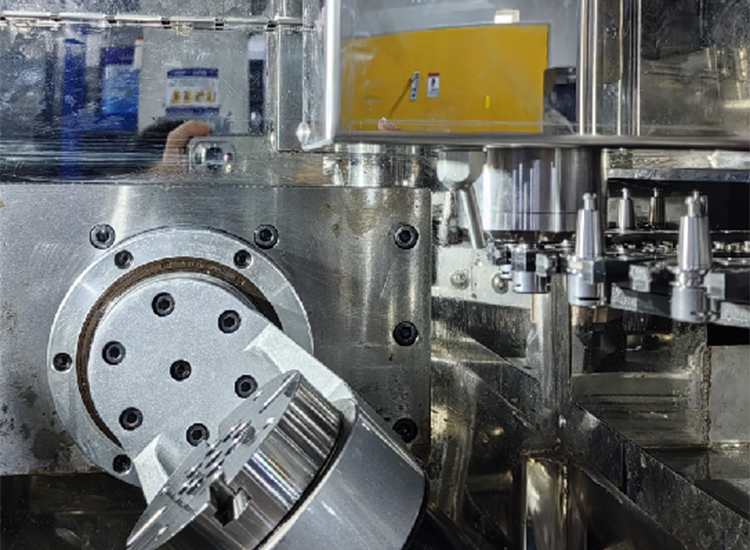

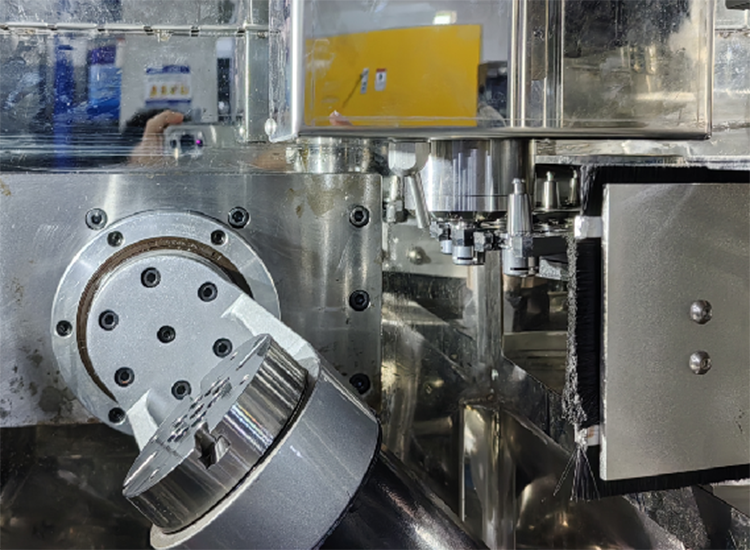

Angle of rotation of axis B |
±105° |
|
Fifth axis C axis rotation Angle |
360 ° |

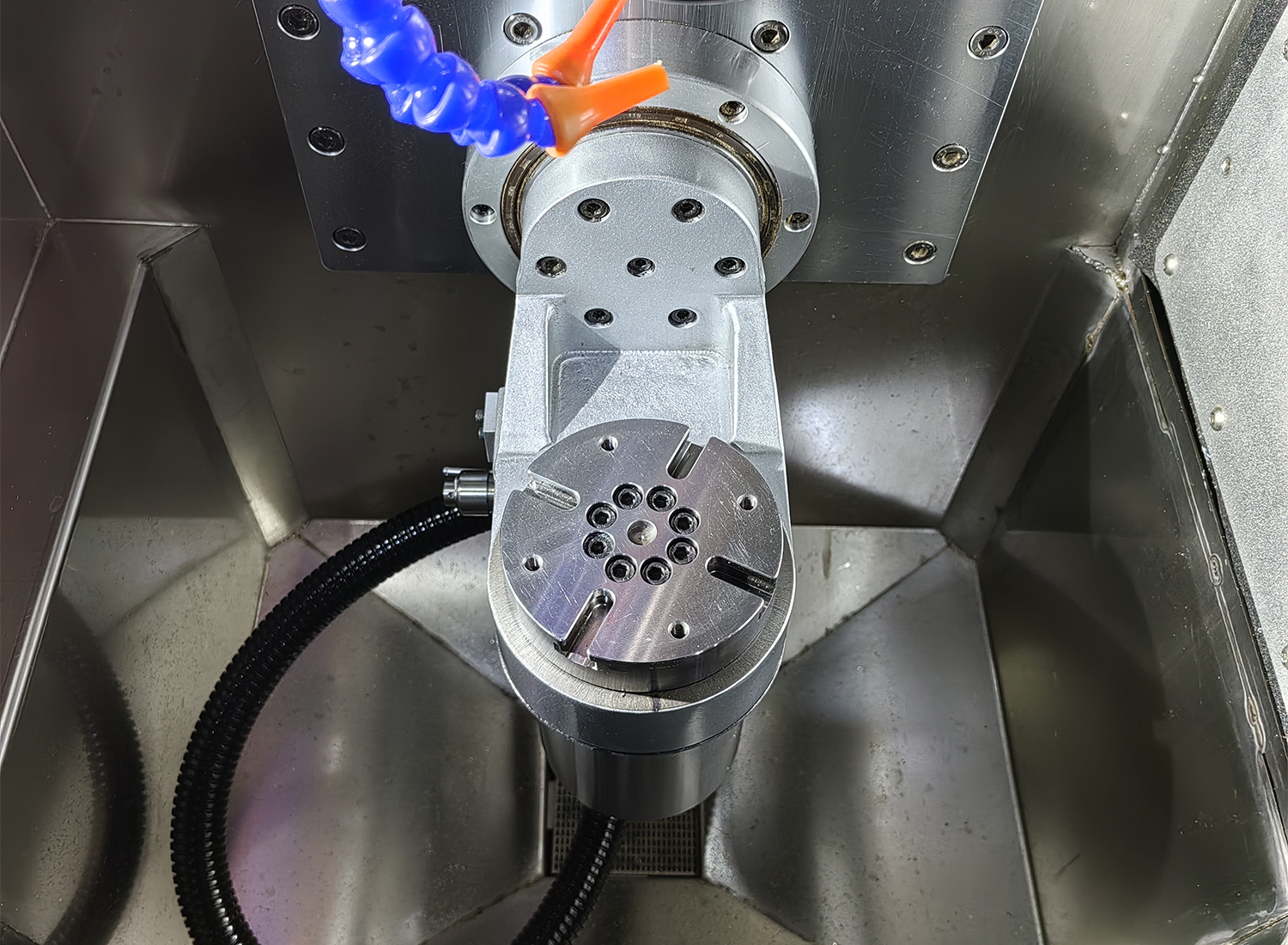

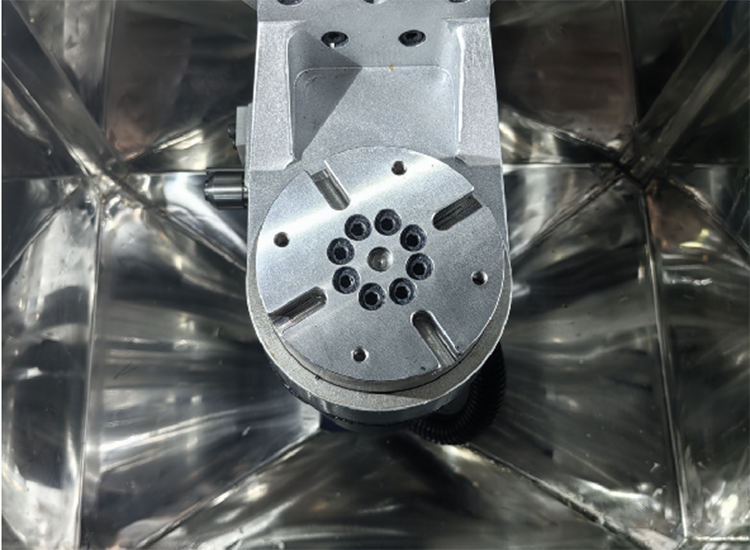

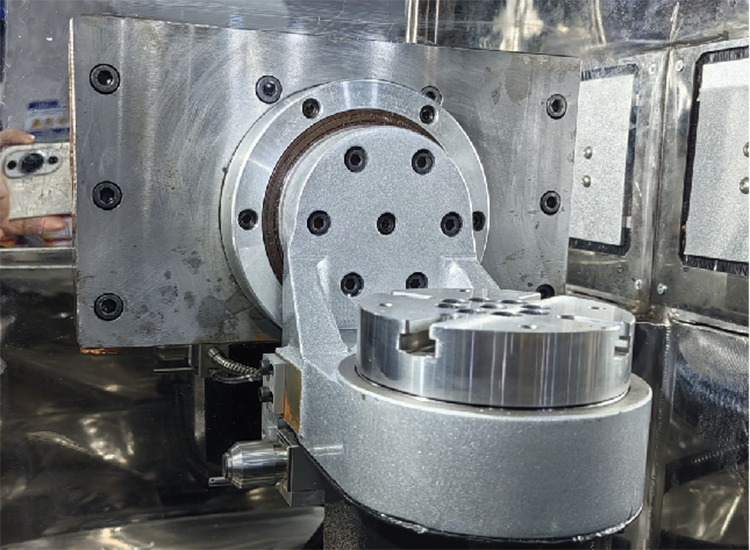

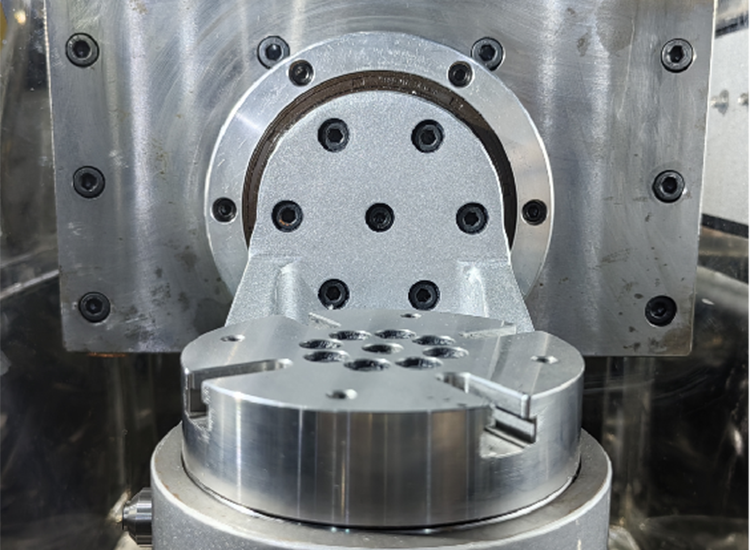

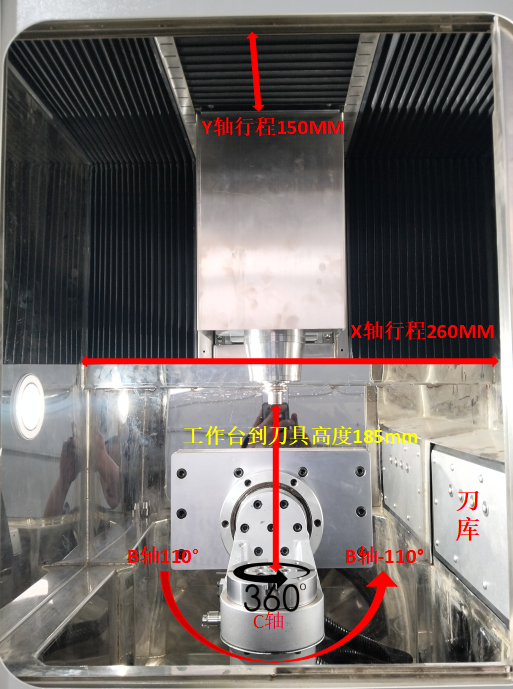

Schematic diagram of five-axis inner compartment swing data
|
A |
Machine parameters: |
|
|
1 |
The machine body and all parts are made of nano castings. |
|
|
2 |
Table size |
Ǿ100mm |
|
3 |
T-groove |
|
|
4 |
The largest load |
20KG |
|
5 |
Maximum feed heigh |
200mm |
|
6 |
Spindle to table distance |
30－200mm |
|
7 |
Triaxial travel X/Y/Z |
300/150/170mm |
|
8 |
The spindle diameter |
Ǿ62 |
|
9 |
Spindle speed |
0-60000RPM |
|
10 |
Spindle motor power |
2.5KW (optional Ǿ80, 4KW 40000 rpm ISO20 spindle) |
|
11 |
Spindle tool library capacity |
12 (ISO20 only 10) |
|
12 |
Tool change time |
≤6s |
|
13 |
The spindle taper |
Standard T11 (ISO optional) |
|
14 |
Knife library classes |
Servo disc rotation |
|
15 |
Fast moving rate X/Y/Z |
12/12/12m/Min |
|
16 |
Processing speed |
6－12m/Min |
|
17 |
Positioning accuracy |
±0.006/300mm |
|
18 |
Repetitive positioning accuracy |
±0.006/300mm |
|
19 |
Machined surface accuracy |
≤Ra3.2－1.6 |
|
20 |
The machining accuracy |

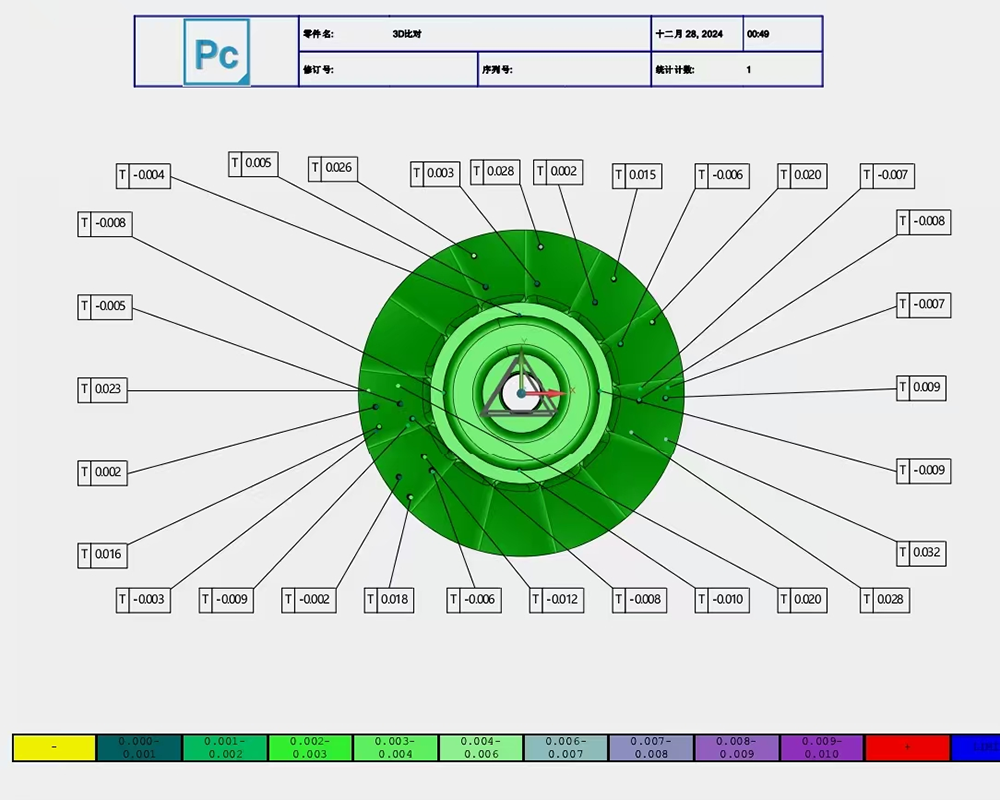

±0.02-0.03mm (calibrated by Renishaw ballbar, UK) |
|
21 |
Working voltage |
220V±10%/110V±10% |
|
22 |

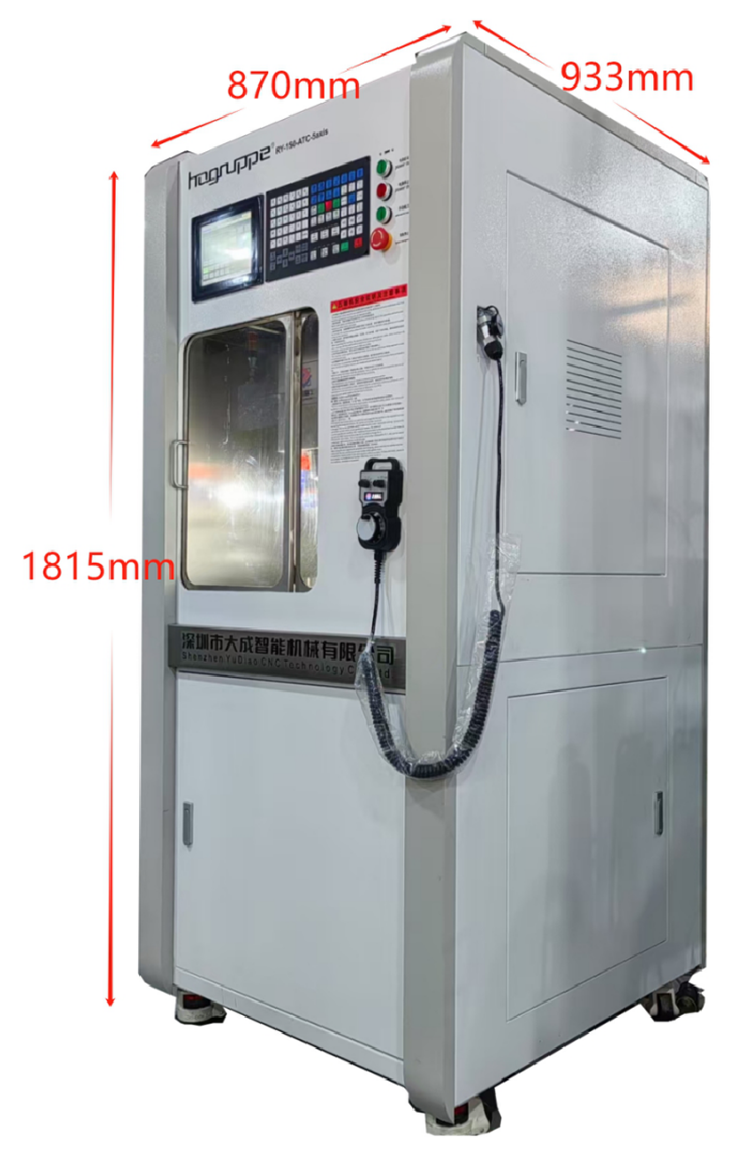

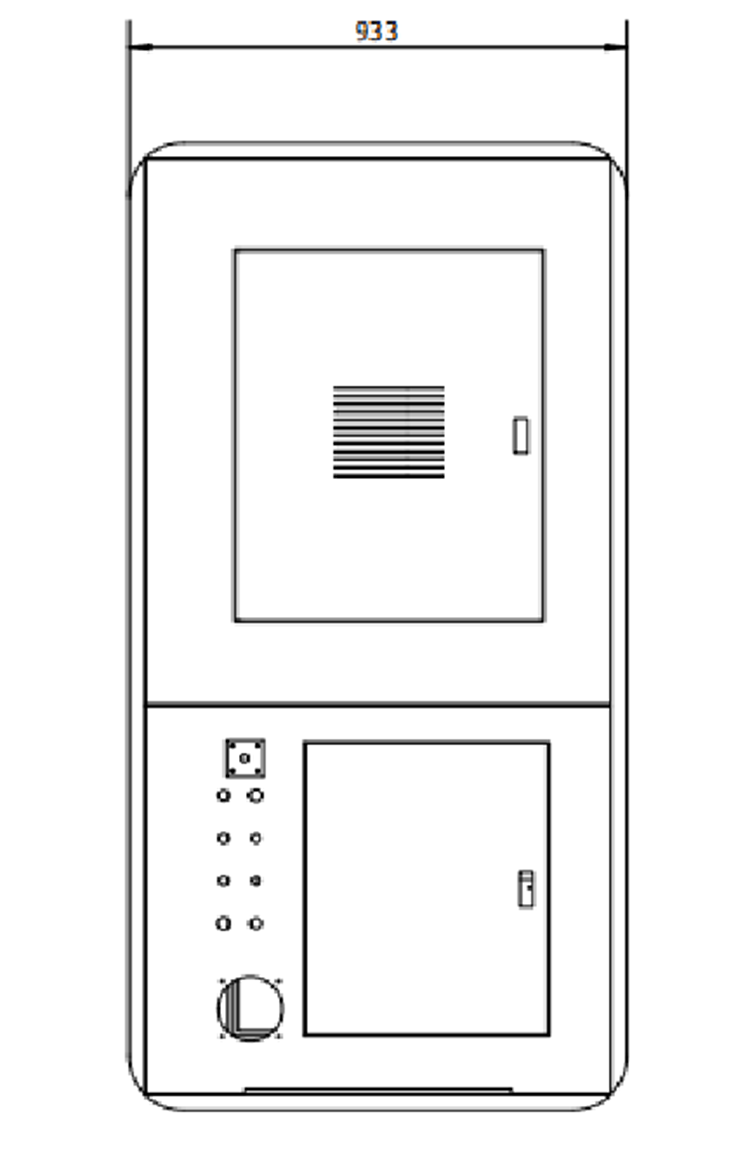

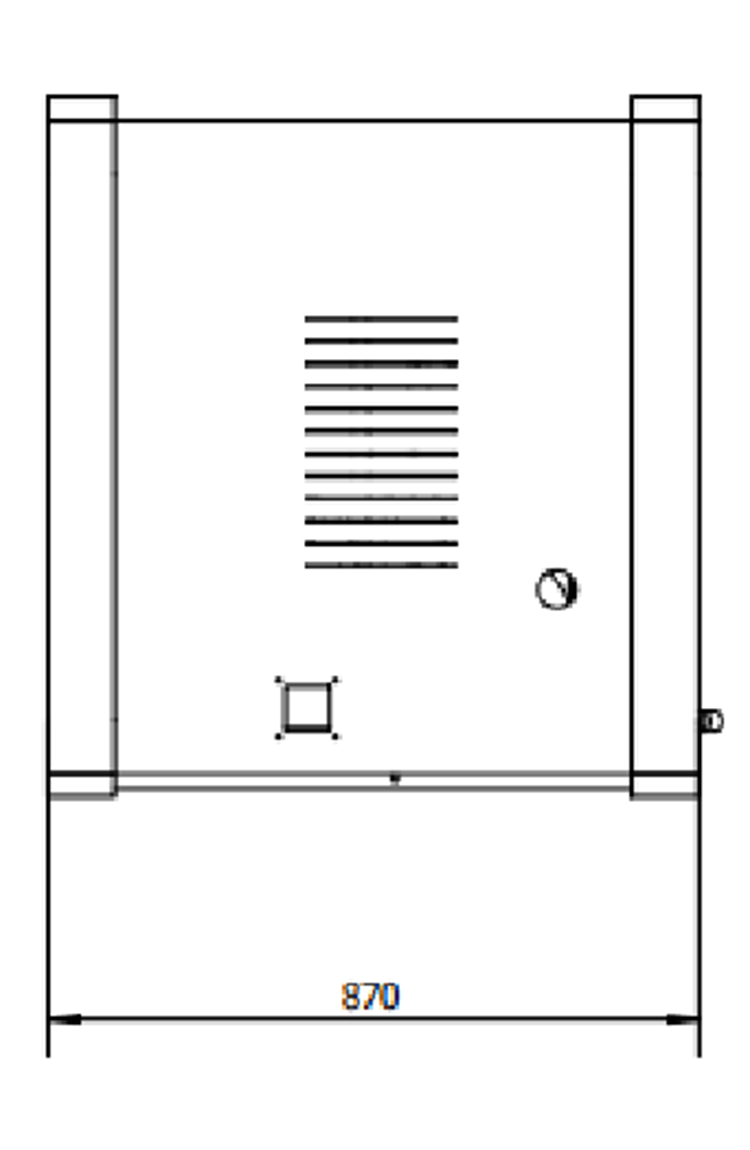

Machine size (l * W * H) |
870×910×1900mm |
|
23 |
The body weight |
650KG |
|
B |
5-axis parameters： |
|
|
1 |
Fourth axis B axis rotation angle |
±105° |
|
2 |
Fifth axis C axis rotation angle |
360° |
|
2-1 |
The repeatability of the B-axis and C-axis is |
±15arcsecond |
|
2-2 |
The positioning accuracy of the B-axis and C-axis is |
±30-60arcsecond |
|
3 |
Turntable response time |
≤0.1s |
|
4 |
Five-axis linkage mode |
3+2 or 4+1 and five-axis simultaneous motion function (with RCTP optional) |
|
C |
Machine tool configuration details brand parameters： |
|
|
1 |
System Configuration |
Taiwan SYNTEC HC 8E-S absolute value system (SYNTEC 220MA-5) |
|
2 |
Spindle |
2.5KW spindle motor (high-precision and high-speed spindle) |
|
3 |
Ball Screw |
Taiwan TBI grinding grade 2005 |
|
4 |
Linear Guides |
Taiwan Hiwin high precision and high rigidity guide rail H25 |
|
5 |

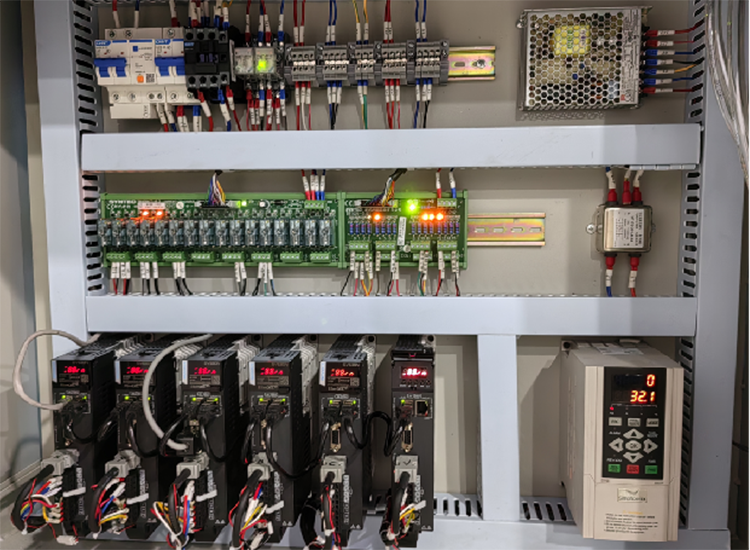

Servo unit |
Absolute value Inovance servo motor 400W |
|
6 |
Screw bearings |
Taiwan TPI precision bearings |
|
7 |
Switching Power Supply |
Taiwan Mean Well |
|
8 |
Electrical switches |
China Chint |
|
9 |
Lubrication system |
Fully automatic butter and grease lubrication system |
|
10 |
Couplings |
China Hongruppe |
|
11 |
Automatic tool setting instrument |
China Hongruppe |
|
12 |
;Handwheel |
China Hongruppe |
|
13 |
Frequency Converter |
China Quartet |
|
14 |
Spindle cooling system |
Water cooler with compressor |
|
15 |
Cooling pump head |
7M |
|
16 |
Disc servo tool magazine |
12 tool magazines (ISO20 tool magazine only has 10 tools) |
|
17 |
Machine tool processing chamber closed |
Fully enclosed |
|
18 |
Continuous operation time of equipment |
7*24 hours/week |
|
19 |
Four-axis and five-axis reducer |
Japanese four-axis and five-axis (precision ±30-60 arc seconds) |
|
NO. |
Product (name) |
Quantity |
Quantity |
|
1 |
RY-150-ATC-5 machine tool (including castings, sheet metal, and systems) |
1SET |
|
|
2 |
Spindle Cooling Machine |
1SET |
|
|
3 |
Working cooling oil pump |
1POS |
|
|
4 |
Toolbox |
1POS |
|
|
5 |
T-screws, clamps, spacers |
4SET |
|
|
6 |
Spindle lock tool holder |
1POS |
|
|
7 |
Spindle disassembly wrench |
1SET |
|
|
8 |
6-corner wrench |
1SET |
|
|
9 |
T11 handle |
3SET |
|
|
10 |
ER11 chuck |
3POS |
|
|
11 |
USB flash drive |
1POS |
|
|
12 |
screwdriver |
2POS |
|
-

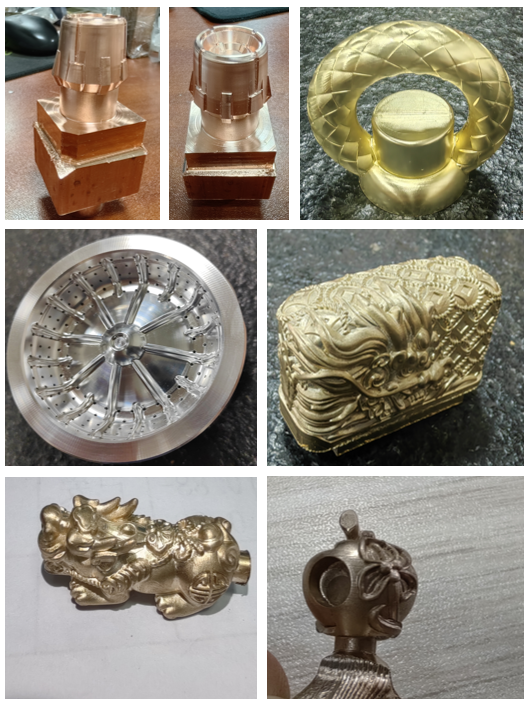

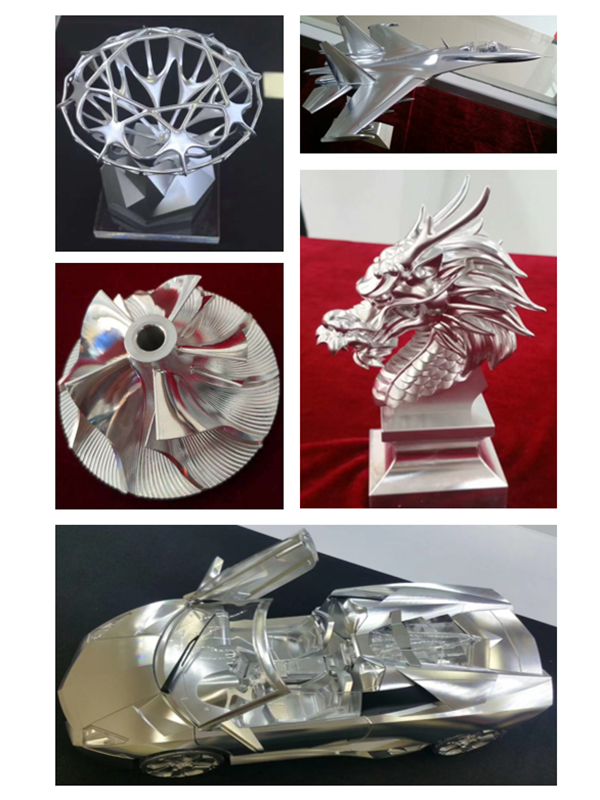

Dental Industry
-

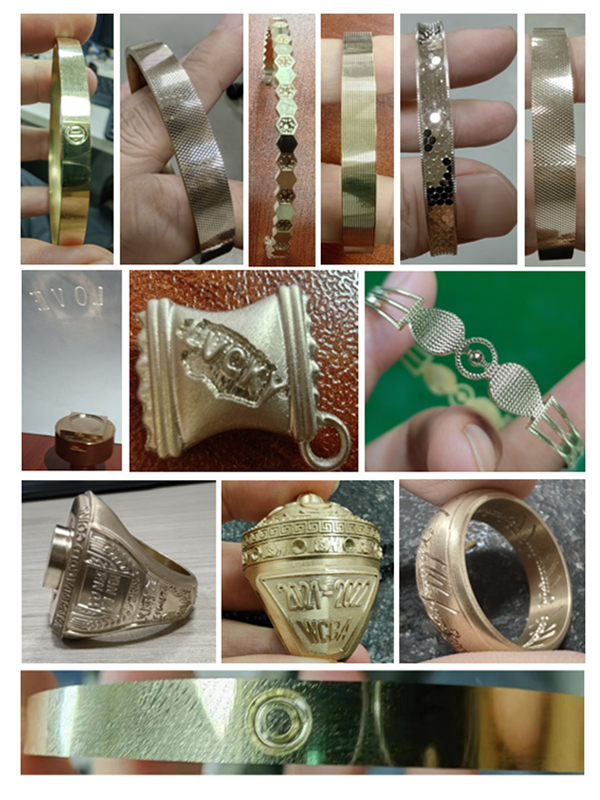

Jewelry Industry
-
Watch Parts
-
Mould industry
-

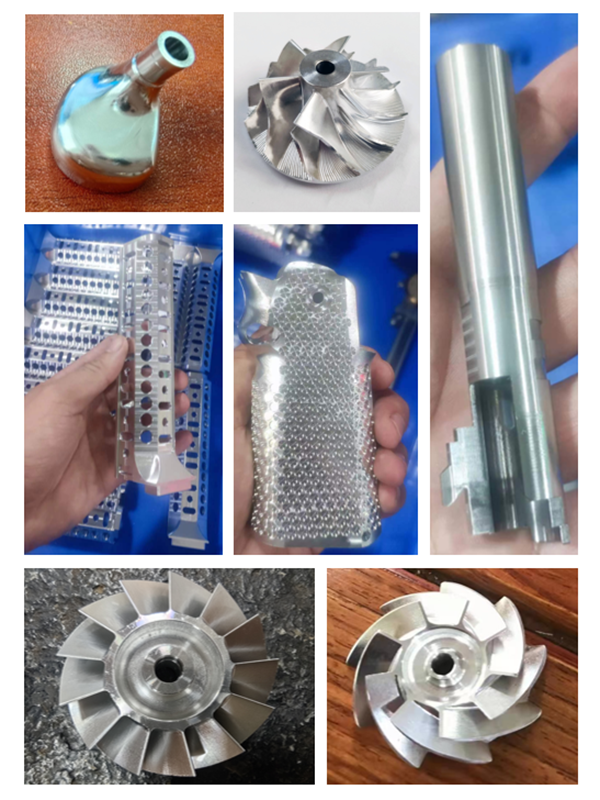

Precision Parts
-
Precision Parts
The company has a complete quality management system, and all procedures from program research and development, production and processing, assembly technology, and precision testing are strictly implemented in accordance with the relevant standards of SOP.GB/T24109-2009. It has world-class testing equipment (British Renishaw ballbar and laser interferometer, etc.) to ensure product quality, and has a high-quality, efficient and rich technical accumulation after-sales service team to provide customers with fast and high-quality services.
-
Ship to Vietnam
-
Shipping to Japan
-
Shipping to Japan
