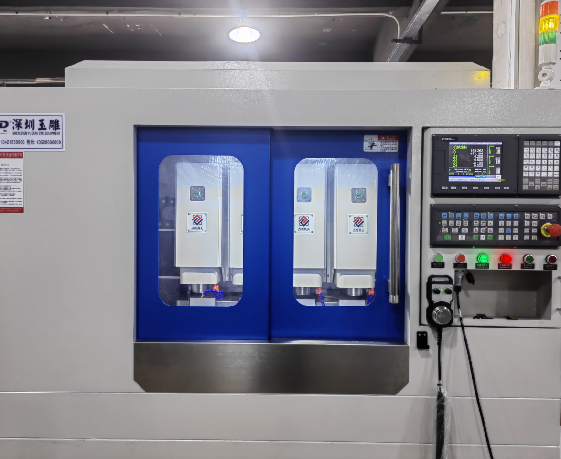

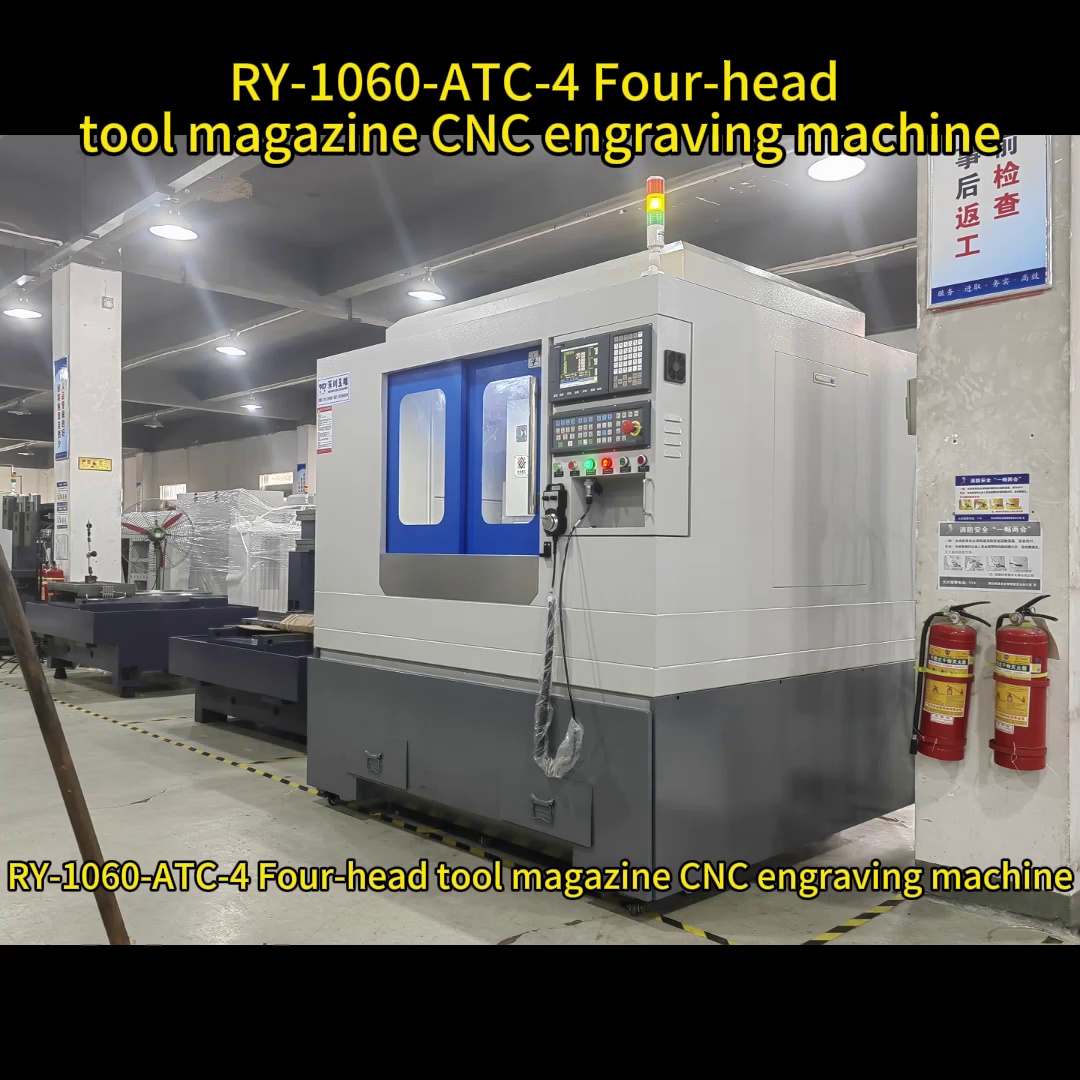

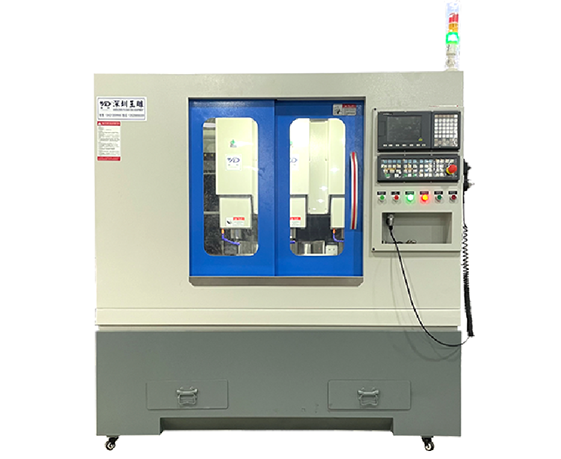

RY-1060-ATC-4 Precision CNC Engraving and Milling Machine
- Capable of rough and finish machining of steel, aluminum, and copper molds.
- Suitable for manufacturing various molds and precision parts.
- Can perform engraving, milling, cutting, and drilling.
- Strong rough machining capabilities and high-speed finish machining.

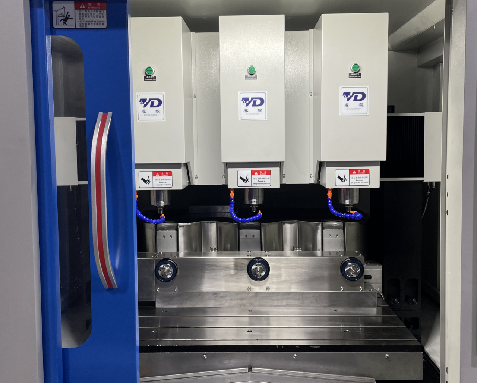

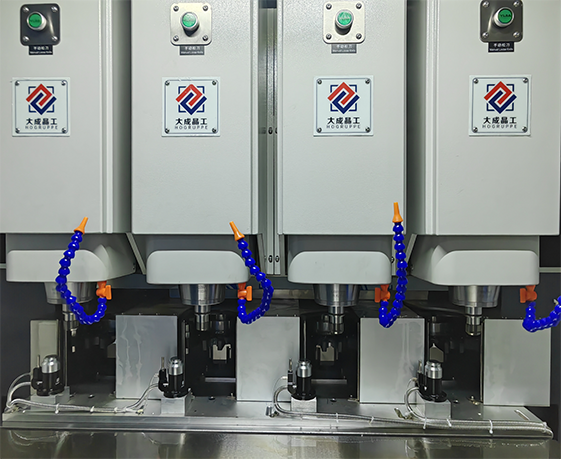

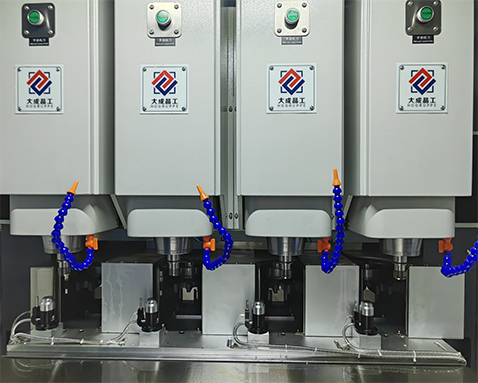

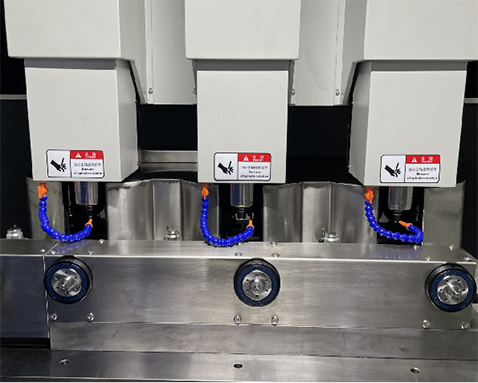

- Equipped with multi-head processing technology to speed up mass production and reduce manufacturing costs.
- Equipped with ATC (Automatic Tool Changer) function
- Professional manufacturing of steel, copper, and aluminum molds.
- Ideal for precision parts production in the military industry.
- Suitable for automotive parts production.
- Precision hardware parts manufacturing.
- 3C electronic parts manufacturing, including glass and ceramics.
- Applicable for prototype manufacturing and other related industries.
|
1 |
Table size |
1050×600mm |
14 |
Positioning accuracy |
±0.006/300mm |
|
2 |
T-groove |
10×5×78mm |
15 |
Repetitive positioning accuracy |
±0.006/300mm |
|
3 |
The largest load |
200KG |
16 |
Machined surface accuracy |
≤Ra1.6 |
|
4 |
Maximum feed heigh |
250mm |
17 |
The machining accuracy |
±0.01mm |
|
5 |
Spindle to table distance |
80－250mm |
18 |
Working voltage |
380V±10%/220V±10% |
|
6 |
Triaxial travel X/Y/Z |
260/500/170mm |
19 |

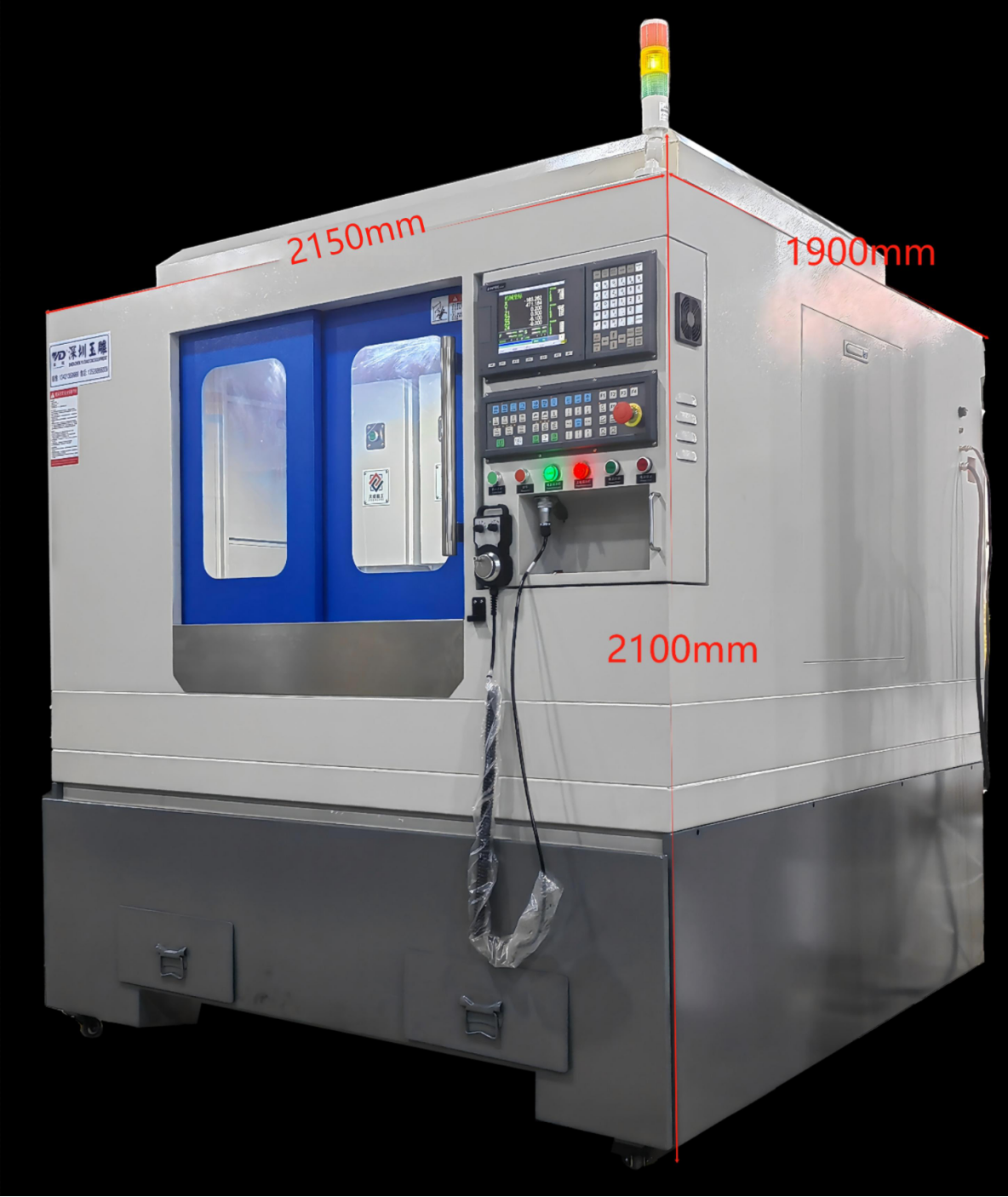

Machine size (l * W * H) |
2150×1900×2100mm |
|
7 |
The spindle diameter |
Ǿ100/Ǿ80/Ǿ62 |
20 |
The body weight |
3500KG |
|
8 |
Spindle speed |
36000/40000/60000RPM |
21 |
The system configuration |
新代 6GA -E绝对值 Taiwan SYNTEC 6GA -E |
|
9 |
Spindle motor power |
7.5/4 KW/2.5KW |
22 |
Servo unit |
Panasonic Servo motor |
|
10 |
Fast moving rate X/Y/Z |
12/12/12m/Min |
23 |
Ball screw |
Japan NSK /THK |
|
11 |
rocessing speed |
6－12m/Min |
24 |
Linear guide |
Taiwan HIWIN/PMI |
|
12 |
Spindle tool library capacity |
12*4=48/11*4=44 |
25 |
The spindle taper |
ISO25/ISO20/T11 |
|
13 |
Tool change time |
≤5S |
26 |
Knife library classes |
Servo disc rotation |
|
14 |
The center distance between the two Z-axes |
260mm |
-

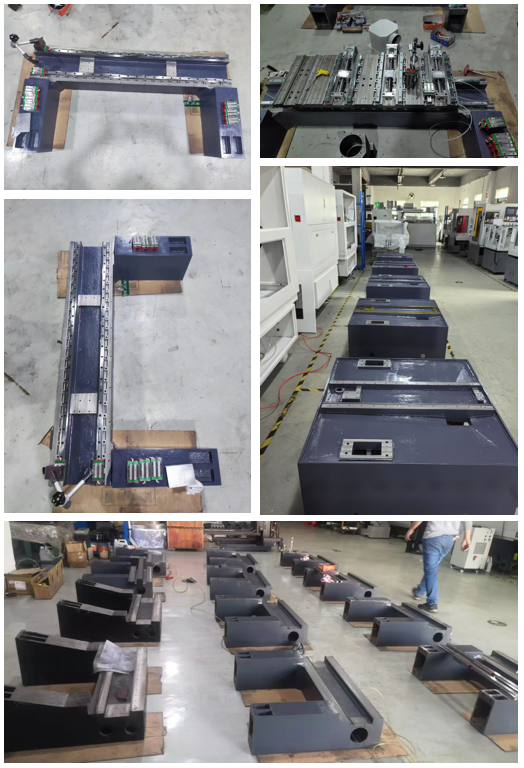

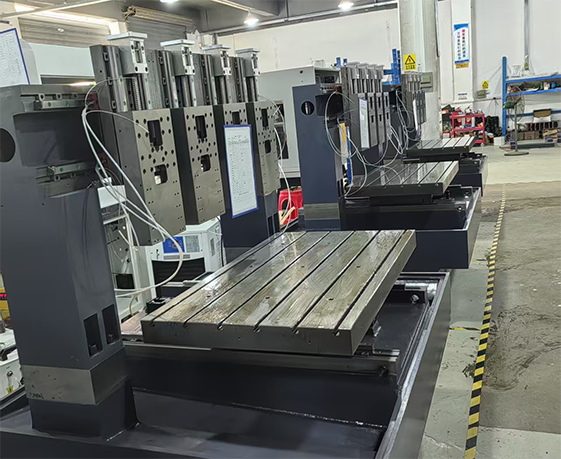

The entire machine features a fully cast iron body with a weight of 3500KG, ensuring the stability and durability of the machine tool.
-

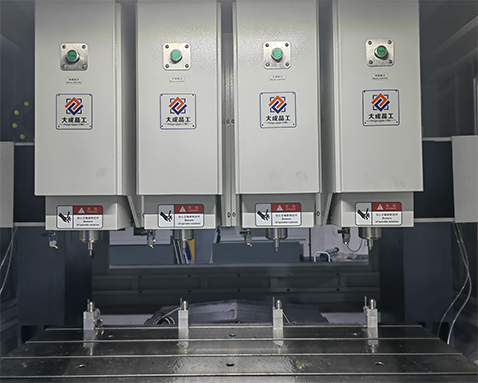

Rotary servo tool magazine, each head holds 10-14 cutting tools.
-
Each head has a working table travel of XYZ 260500170mm.
-
Taiwan New Generation 21GA Absolute Value Control System
|
A |
Machine parameters: |
|
|
1 |
The machine body and all parts are made of nano castings. |
|
|
2 |
Table size |
1050×600mm |
|
3 |
T-groove |
10×5×78mm |
|
4 |
The largest load |
300KG |
|
5 |
Maximum feed heigh |
250mm |
|
6 |
Spindle to table distance |
80－250mm |
|
7 |
Triaxial travel X/Y/Z |
260/500/170mm |
|
7-1 |
The center distance between the two Z-axes |
260mm |
|
8 |
The spindle diameter |
Ǿ100/Ǿ80 |
|
9 |
Spindle speed |
0-36000/40000RPM |
|
10 |
Spindle motor power |
6KW (optional Ǿ80, 4KW 40000 rpm ISO20 spindle) |
|
11 |
Spindle tool library capacity |
ISO25 10 per head (ISO20 12 per head) |
|
12 |
Tool change time |
≤6S |
|
13 |
The spindle taper |
ISO25/ISO20 |
|
14 |
Knife library classes |
Servo disc rotation |
|
15 |
Fast moving rate X/Y/Z |
12/12/12m/Min |
|
16 |
Processing speed |
6－12m/Min |
|
17 |
Positioning accuracy |
±0.006/300mm |
|
18 |
Repetitive positioning accuracy |
±0.006/300mm |
|
19 |
Machined surface accuracy |
≤Ra0.8－1.6 |
|
20 |
The machining accuracy |

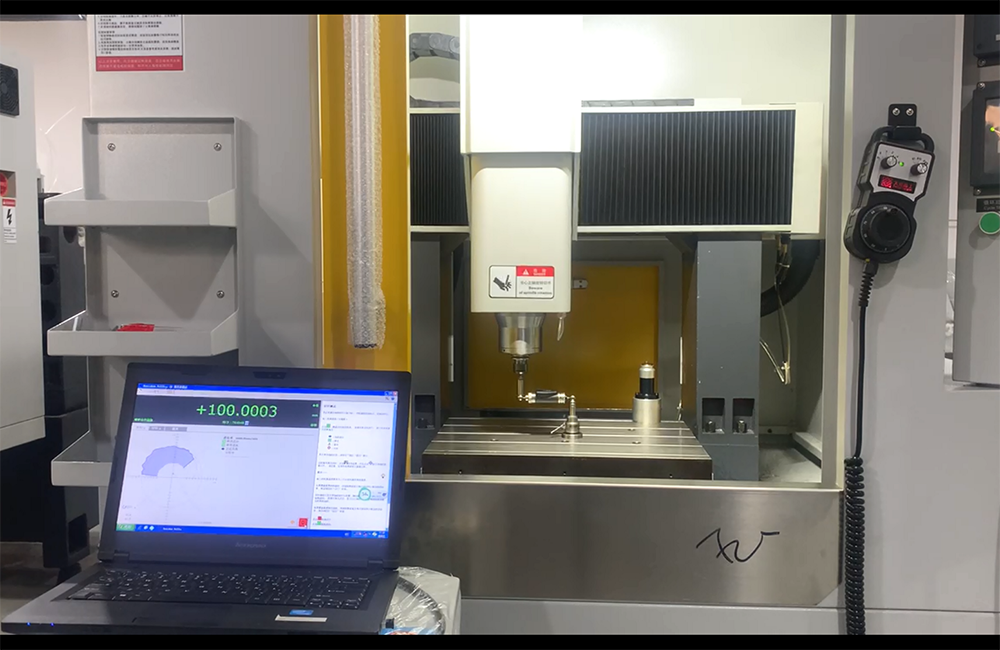

±0.01mm (calibrated by Renishaw ballbar, UK) |
|
21 |
Working voltage |
3800V±10%/220V±10% |
|
22 |
Machine size (l * W * H) |
2150×1900×2100mm |
|
23 |
The body weight |
3500KG |
|
B |

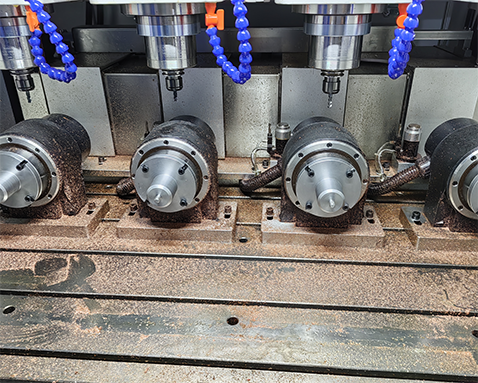

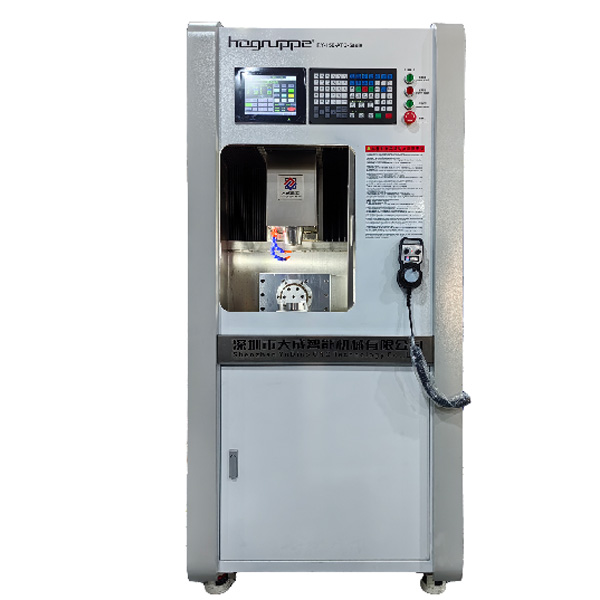

5-axis parameters： |
|
|
1 |
Fourth axis B axis rotation angle |
/Optional) |
|
2 |
Fifth axis C axis rotation angle |
/ |
|
2-1 |
The repeatability of the B-axis and C-axis is |
/ |
|
2-2 |
The positioning accuracy of the B-axis and C-axis is |
/ |
|
3 |
Turntable response time |
/ |
|
4 |
Five-axis linkage mode |
/ |
|
C |

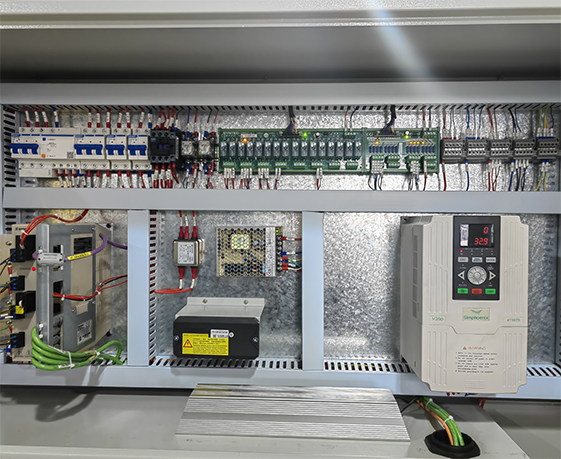

Machine tool configuration details brand parameters： |
|
|
1 |
System Configuration |
Taiwan SYNTEC 6GA 21GA/23GA absolute value system |
|
2 |
Spindle |
6KW/4KW spindle motor (high-precision and high-speed spindle) |
|
3 |
Ball Screw |
Japan NSK grinding grade 2505 |
|
4 |
Linear Guides |
Taiwan Hiwin high precision and high rigidity guide rail H25 |
|
5 |
Servo unit |
Japan Panasonic absolute servo motor 750W |
|
6 |
Screw bearings |
Taiwan TPI precision bearings |
|
7 |
Switching Power Supply |
Taiwan Mean Well |
|
8 |
Electrical switches |
China Chint |
|
9 |
Lubrication system |
Fully automatic butter and grease lubrication system |
|
10 |
Couplings |
China Hongruppe |
|
11 |
Automatic tool setting instrument |
China Hongruppe |
|
12 |
Handwheel |
China Hongruppe |
|
13 |
Frequency Converter |
China Quartet |
|
14 |
Spindle cooling system |
Water cooler with compressor |
|
15 |
Cooling pump head |
7M |
|
16 |
Disc servo tool magazine |
ISO25 10 per head (ISO20 12 per head) |
|
17 |
Machine tool processing chamber closed |
Fully enclosed |
|
18 |
Continuous operation time of equipment |
7*24 hours/week |
|
19 |
Four-axis and five-axis reducer |
Japanese four-axis and five-axis (precision ±30-60 arc seconds) |
|
NO. |
Product (name) |
Quantity |
Quantity |
|
1 |
RY-1060-ATCmachine tool (including castings, sheet metal, and systems) |
1SET |
|
|
2 |
Spindle Cooling Machine |
1SET |
|
|
3 |
Working cooling oil pump |
1POS |
|
|
4 |
Toolbox |
1POS |
|
|
5 |
T-screws, clamps, spacers |
4SET |
|
|
6 |
6-corner wrench |
1SET |
|
|
7 |
USB flash drive |
1POS |
|
|
8 |
screwdriver |
2POS |
|
-

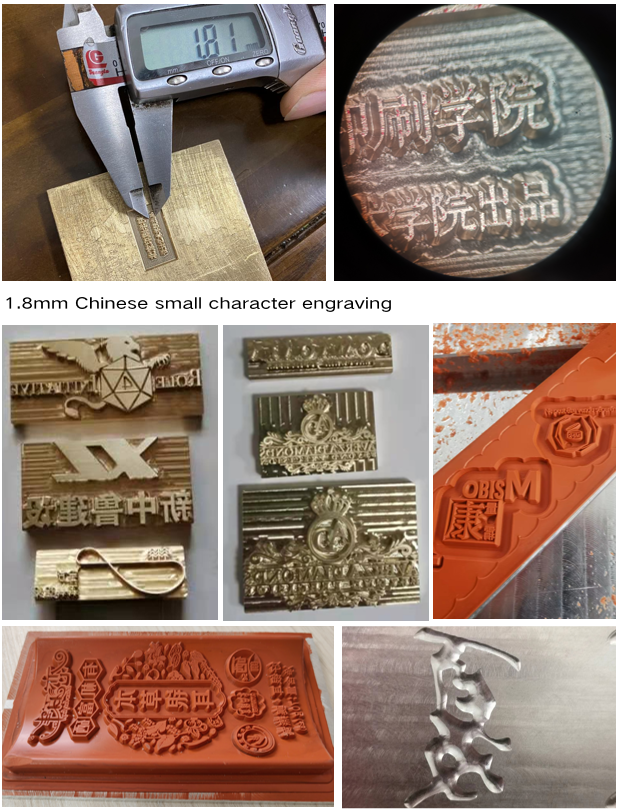

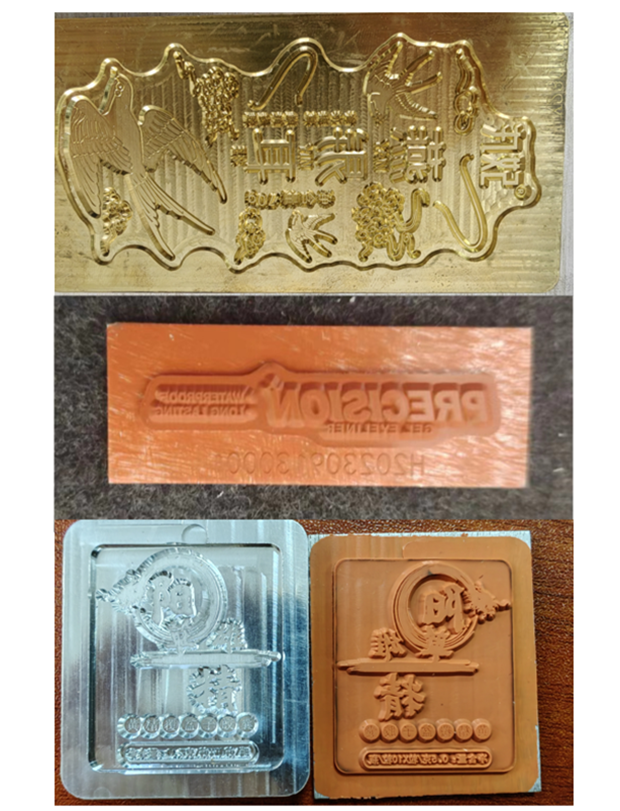

Hot stamping
-
Hot stamping
-

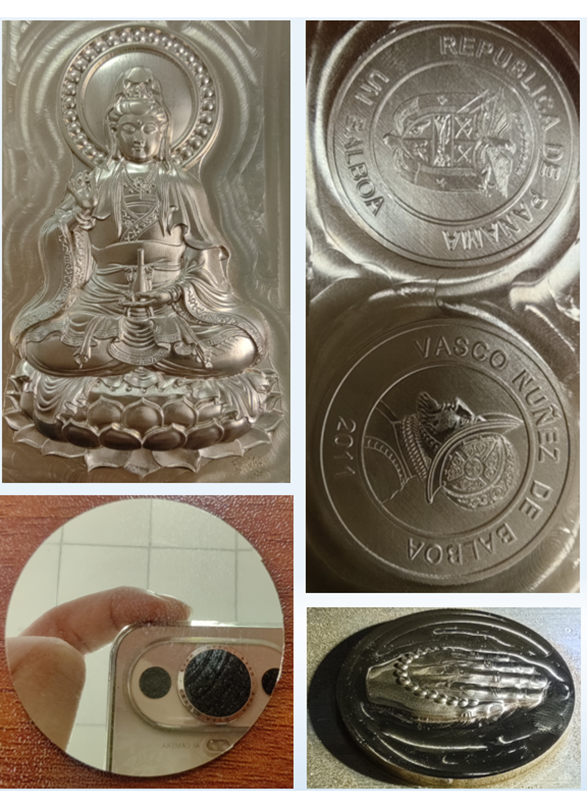

Button Hydraulic Mould
-
Epoxy Mold
-

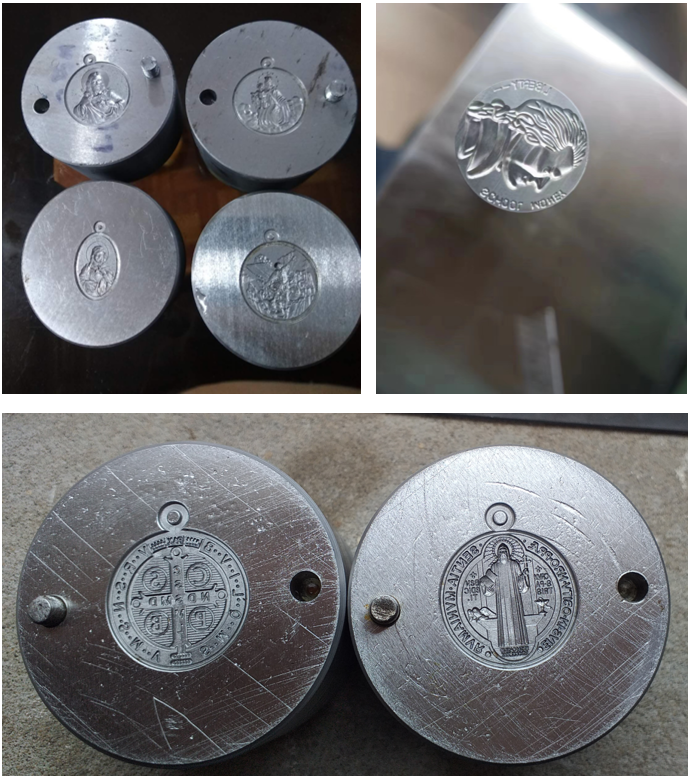

Copper doll mold
-

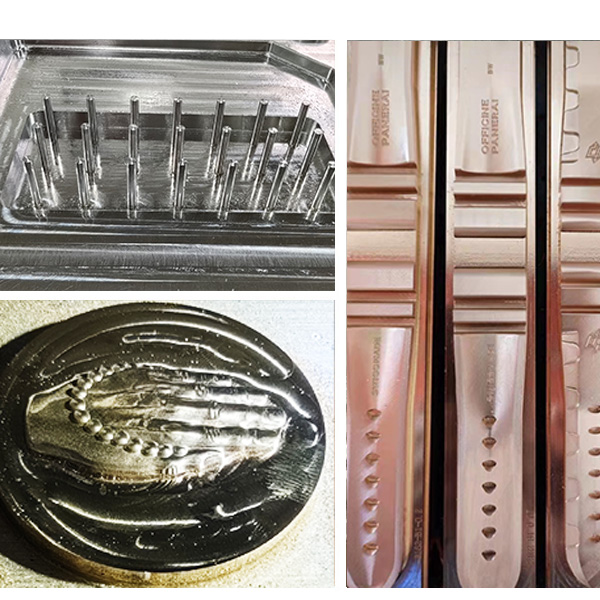

Injection steel mold
-
Precision Parts
-
Precision Parts
-

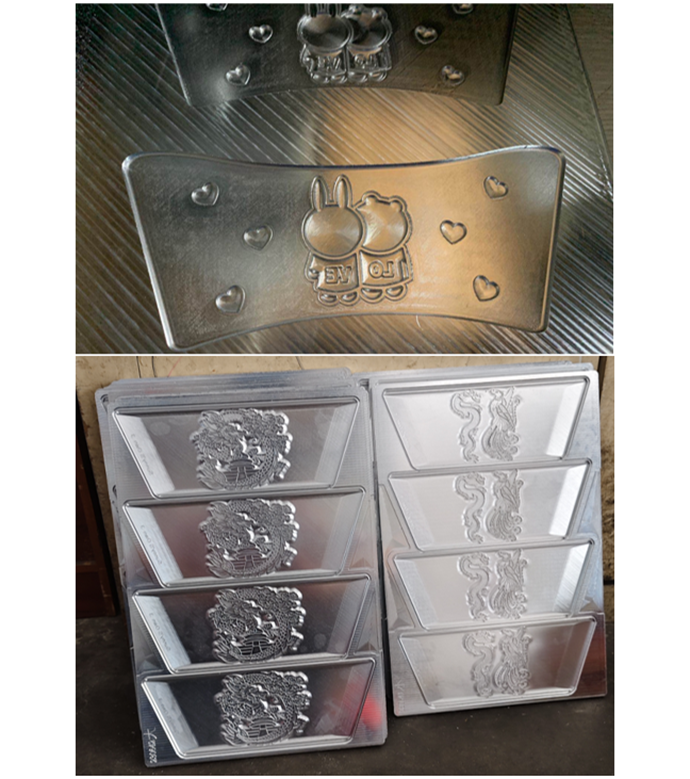

Relief Mold
-

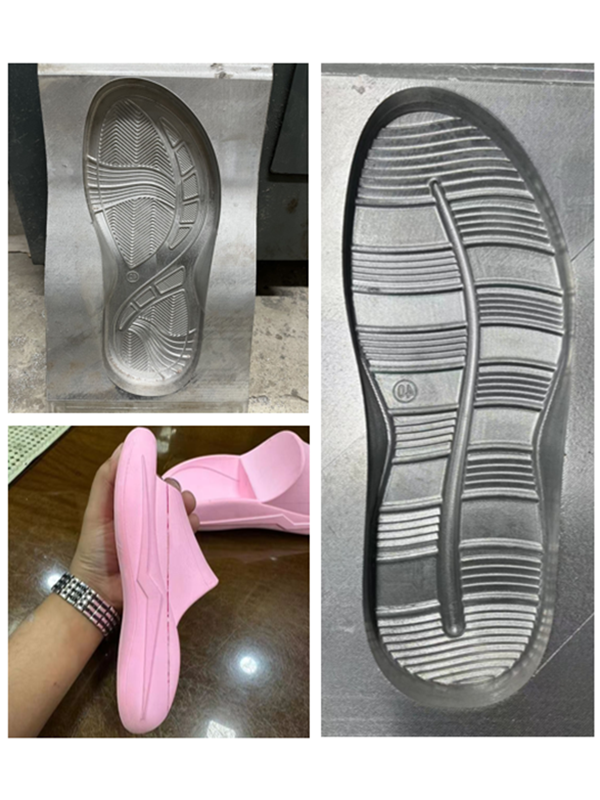

Shoe Model
-
